Transducers Raymarine RV-200 RealVision 3D All-In-One Bronze Thru-Hull Transducer – 0 – 8M Cable [A80465]

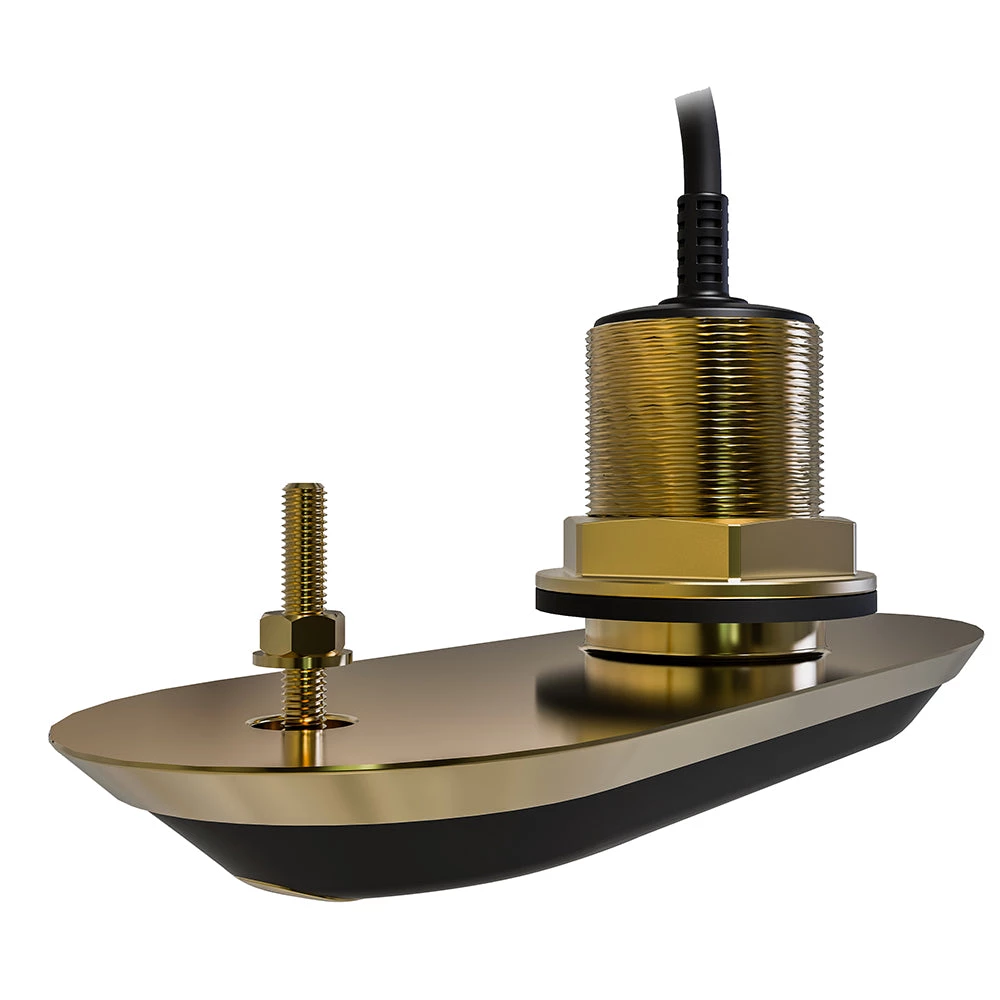

RealVision 3D™ All-In-One Bronze Thru-Hull Transducer – 0° – 8M Cable

Raymarine’s RV-200 Bronze All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-200 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

The RV-200 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-200 also has a built-in fast response water temperature sensor for quick, accurate readings.

The RV-200 features a rugged cast-bronze through hull body suitable for fiberglass or wooden hulls. The RealVision 3D™ transducer elements are arranged with a 0° offset for boats with flat bottoms. The lowprofile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV- 200 works great on trailered boats too, and with no fairing block to cut, installation is a breeze.

What’s in the Box?

• RV-200 Bronze All-In-One Through Hull Transducer with 8-meter (26-foot cable)
• Anti-rotation bolt kit
• Installation instructions

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 25
• Mounting Style: Thru-Hull
• Imagining: Standard/Down/Side
• Chirp: High
• Cable Length (Feet): 26′
• Box Dimensions: 7″H x 14″W x 17″L WT: 10.6 lbs
• UPC: 723193816530
