Transducers Humminbird XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer W/Temp F/SOLIX [710292-1]

XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer with Temp for SOLIX™

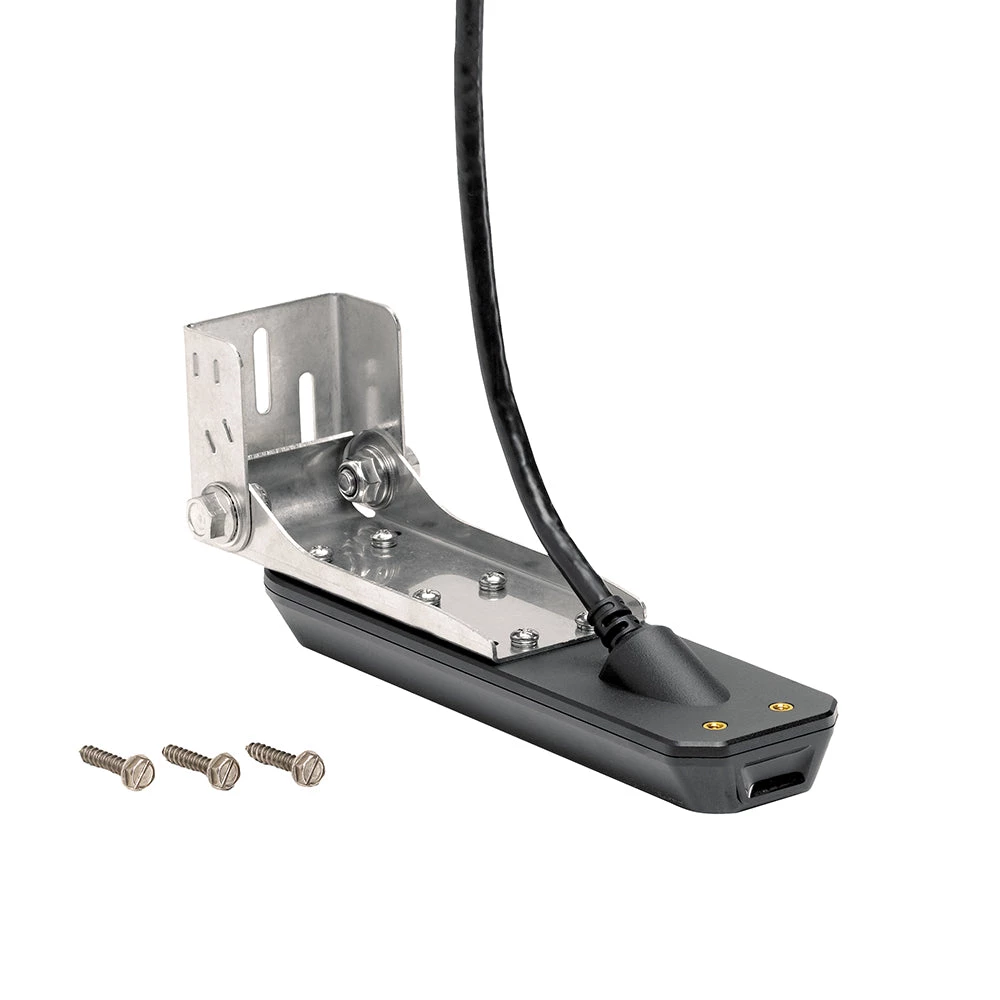

MEGA Side Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable.

Features:

• This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2.
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• MEGA Side Imaging Frequencies – Max Range (side-to-side): 455kHz: 440-500 kHz – 800ft (244m), 800kHz: 790-850 kHz – 250ft (76m), MEGA SI+: 1075-1150 kHz – 400ft (122m)
• MEGA Down Imaging Frequencies – Max Depth: 455kHz: 440-500 kHz – 400ft (122m), 800kHz: 790-850 kHz – 250ft (76m), MEGA DI+: 1075-1150 kHz – 200ft (61m)

Specifications:

• Cable Length (Feet): 20′
• Temperature: Yes
• Speed Included: No

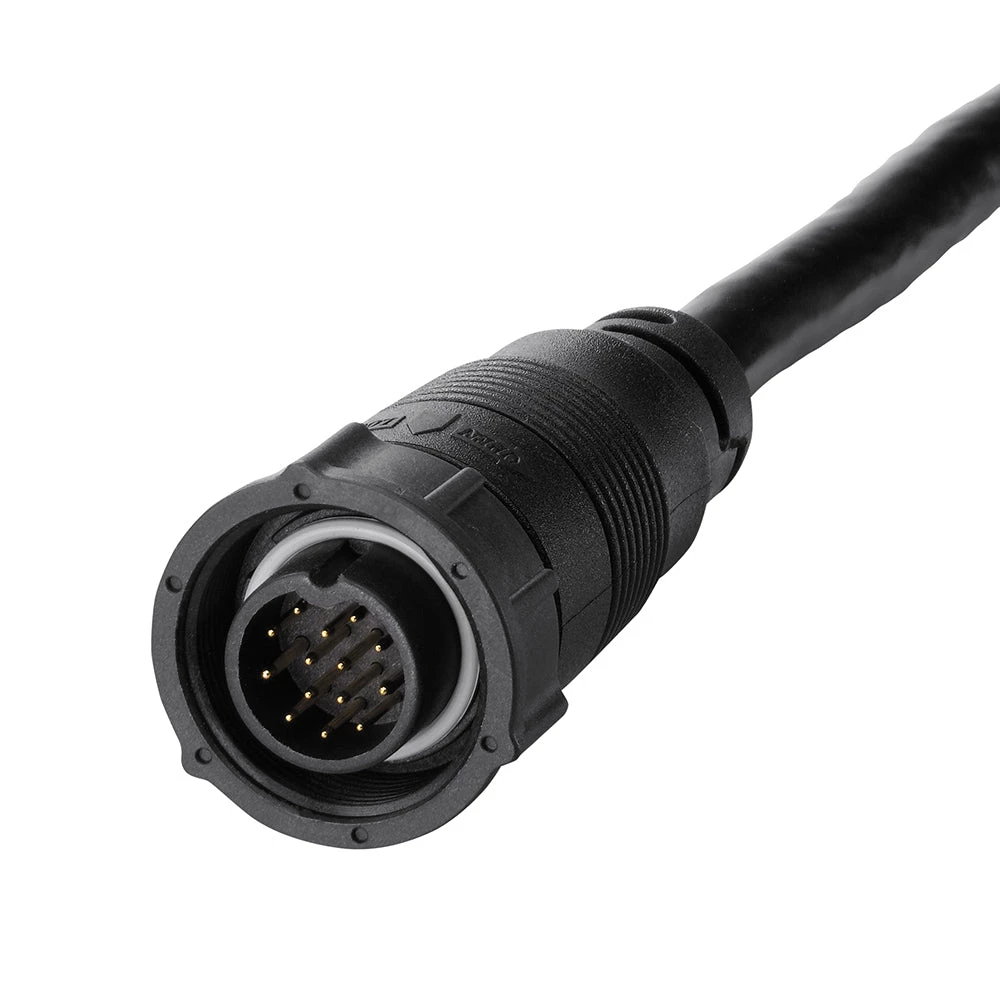

• Pins: 14
• Mounting Style: Transom
• Imagining: Standard/Down/Side
• Chirp: High Wide
• Box Dimensions: 4″H x 9″W x 15″L WT: 2.9 lbs
• UPC: 082324053252

Owner’s Manual (pdf)
