SC3 Series Underwater Light – Bimini Blue

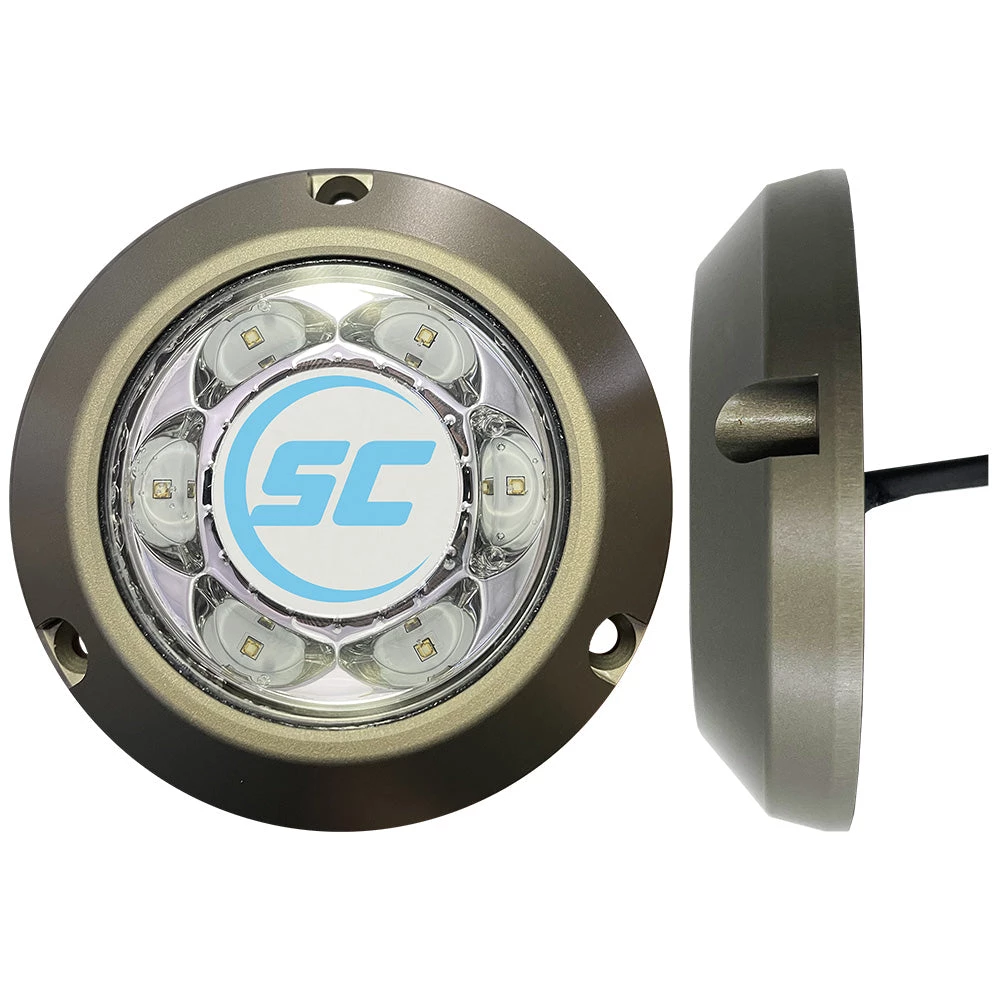

The SC3 underwater light provides your vessel with 24 watts of intense LED lighting. The SC3s are designed with a sub-compact 3” diameter hard anodized aluminum housing for under the waterline surface mounting. Single color or color-changing versions are available with variable brightness and a wide array of control options.

Features:

• Proprietary clear gel-filled design, injected through the entire unit – eliminates condensation and/or water intrusion under stress
• Tough, scratch-resistant, tempered glass lens with hard-anodized aluminum housing – impervious to acetone, solvents, and demanding marine environments
• Transient surge and reverse polarity protection — dramatically prolong unit life
• Thermal throttling technology – enables safe operation even out of water
• From simple on-off to full-featured lighting effects, the unit is enabled for a host of control interfaces

Specifications:

• Up to 3,000 lumens
• 120-degree beam angle
• 24-watt power draw
• 2 amps operating current draw @ 12V
• 10-30 volts input
• 3.6” (91.44mm) outside diameter
• IP68 fully submersible waterproof design

Includes:

• Lighting unit
• 3’ (1M) submersible grade cable
• 3 mounting screws
• 3 year standard warranty
