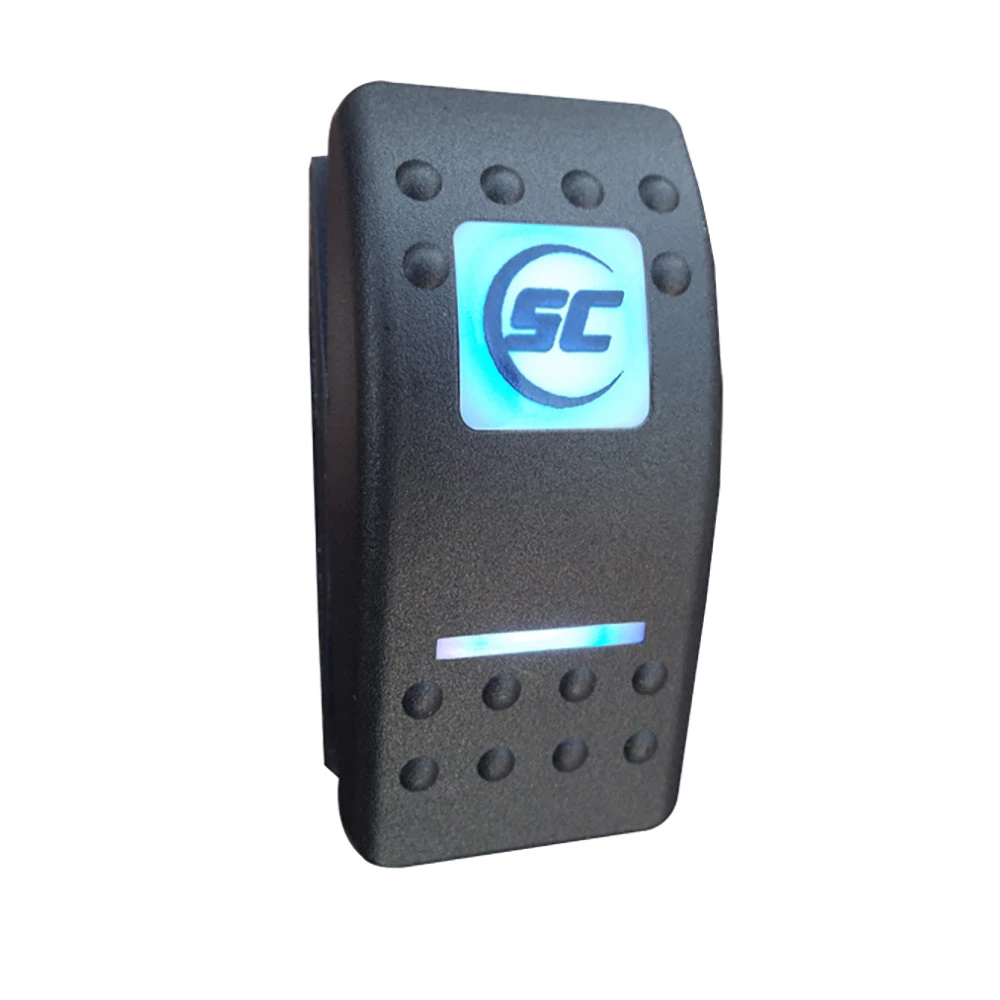

3-Position On/Off/Momentary Marine LED Lighting Switch

On / Off / Momentary Marine LED Lighting Switch for two-color and multi-color lighting – simply toggle power to set color choice. For use with fishing boats, pontoon boats, sports boats, and yachts.

Features:

Power On/Off
Color change
Multiple fade mode changes

Specifications:

Off/On/Momentary
LED Voltage Rating: 12V (Add 600ohm resistor between pin 7 and ground for 24V operation)
LED Color: Blue x 2
Terminals: Brass or copper/silver plate 1/4” (6.3mm) quick connect
Sealing IP66/68, for above-panel components of actual switch only
Operating Temp. -40°C to +85°C
Contact Rating: 20 amps, 4-14VDC and 15 amps, 15-28VDC
Switch and actuator color: Black

Note: Use with SCM-SNLC single-zone lighting controller to access full ShadowNET® lighting control functionality.
