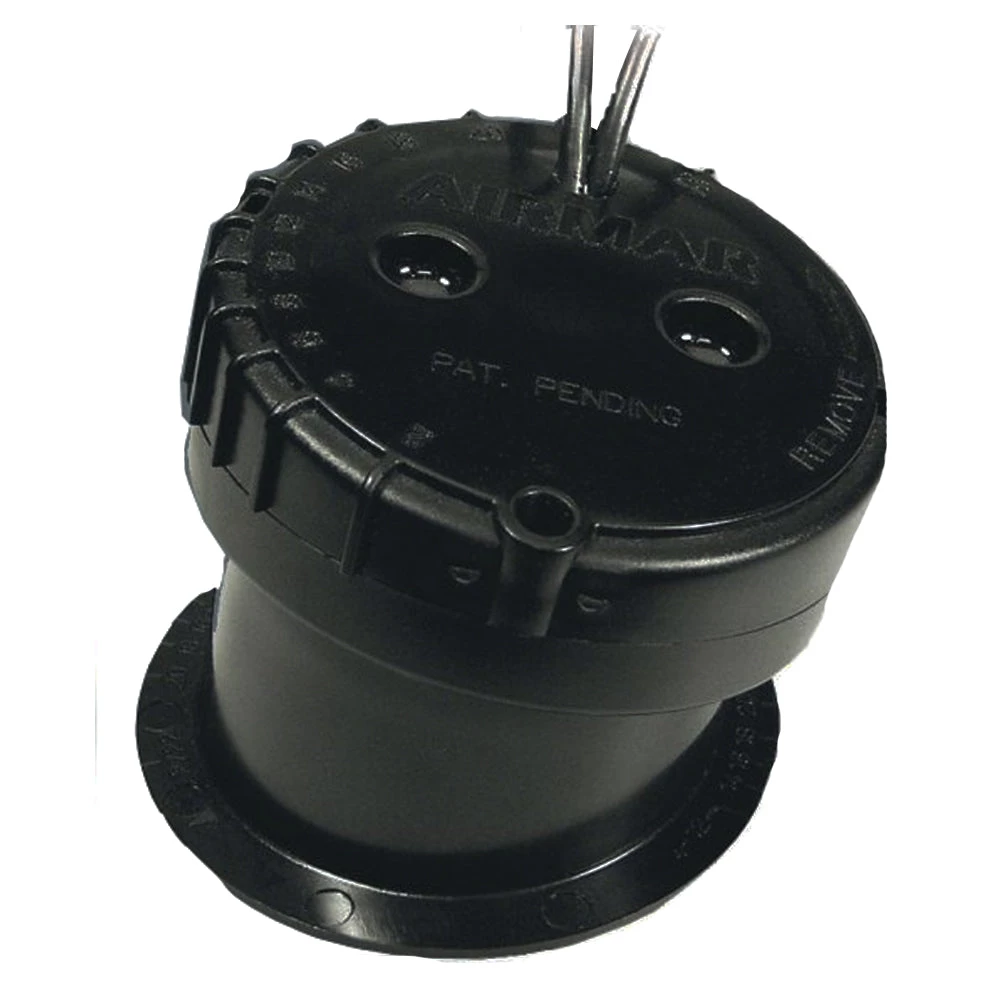

Raymarine P79 Adjustable In-Hull Transducer [E66008]

Adjustable In-Hull Transducer
600 Watt adjustable angled in hull transducer. (P79)

Compatible with the following Echo Sounders:

SL Series: SL755RC, SL760RC , SL1250, and SL1250RC

hsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RC

hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and L1260DRC

Compatible hull material: fiberglass

Max Power: 600 W

Frequency: 200/50 kHz

Beam Angles: 200 kHz 11 50 kHz 45

Features:

• Depth only.
• Can be used in conjunction with the E66019 ST69 speed and temperature sensor
• Easily adjusts to any deadrise angle up to 22
• Transmits sound waves directly at the bottom so strong echoes are reflected back to the transducer
• Can be removed in seconds for servicing or storage
• Only the base piece is bonded to the hull. There is no adhesive layer under the transducer face to absorb sound energy
• Simplifies in-hull installation

30ft (10m) Cable

Specifications:

• Temperature: No
• Speed Included: No
• Mounting Style: In-Hull
• Imagining: Standard
• Chirp: No
• Cable Length (Feet): 30′
• Box Dimensions: 4″H x 8″W x 10″L WT: 2.8 lbs
• UPC: 023193660080
