Raymarine CPT-DVS Transducer Transom Mount F/Dragonfly 4 & 5 [R70374] Transducers

CPT-DVS Transducer Transom Mount f/Dragonfly 4 & 5

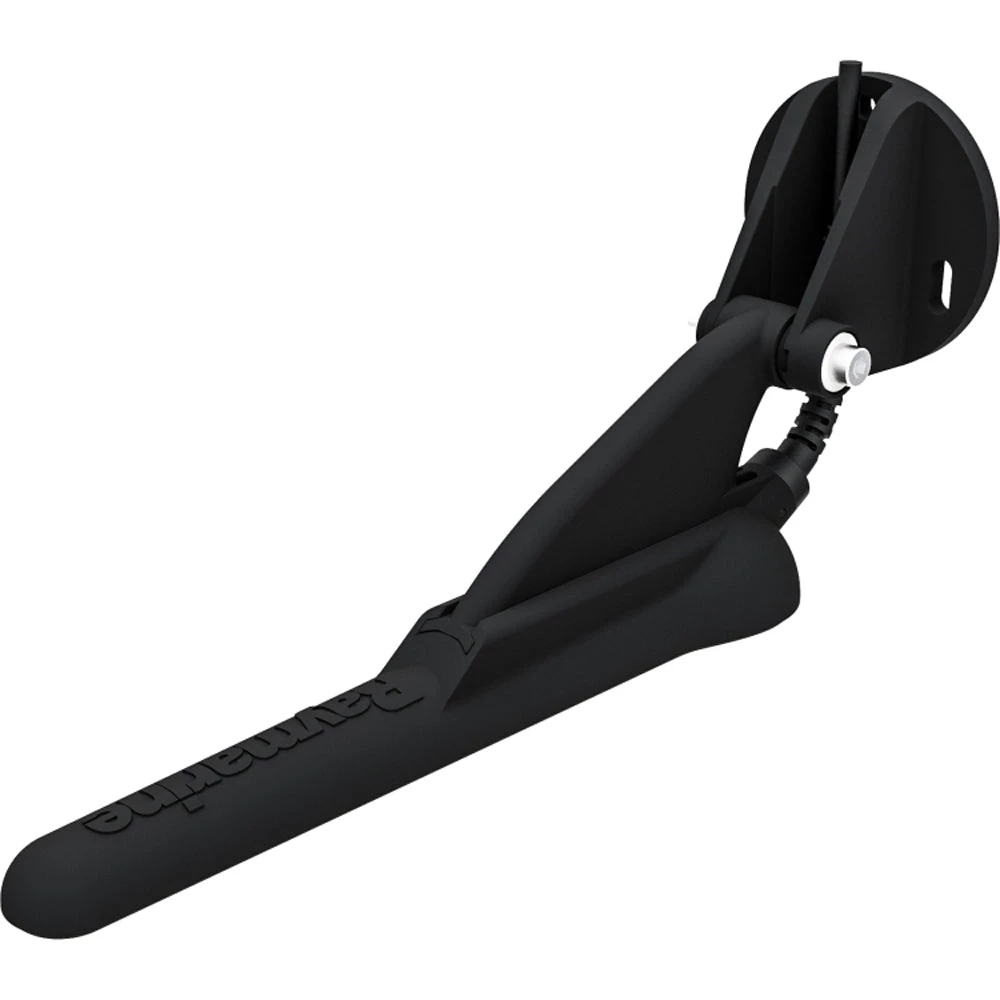

The CPT-DVS Transducer is a dual element CHIRP transducer that features a 1.4° ultra-wide fan shaped beam for wide DownVision images, as well as a second conical shaped beam for excellent fish targeting. In addition, this device senses the depth and temperature of the water. It is equipped with a 19.7′ cable and includes a transom mount bracket. The Raymarine CPT-DVS Transducer is usable with Dragonfly 4DVS and 5DVS fish finders.

The CPT-DVS can be used with the new Dragonfly 4″ and 5″ models. If using with an original Dragonfly 5.7″ or 7″ model, use the A80331 Adapter Cable.

Features:

• Dual element CHIRP transducer
• 1.4′ ultra-wide fan shaped beam for a wide view of DownVision images
• Second conical shaped beam for imaging fish targets
• Depth and temperature
• CPT-DVS cable length is 6m (19.7 ft.)

Specifications:

• Chirp: High
• Speed Included: No
• Mounting Style: Transom
• Cable Length (Feet): 20′
• Imagining: Standard/Down
• Box Dimensions: 2″H x 6″W x 10″L WT: 1.2 lbs
• UPC: 723193793473
