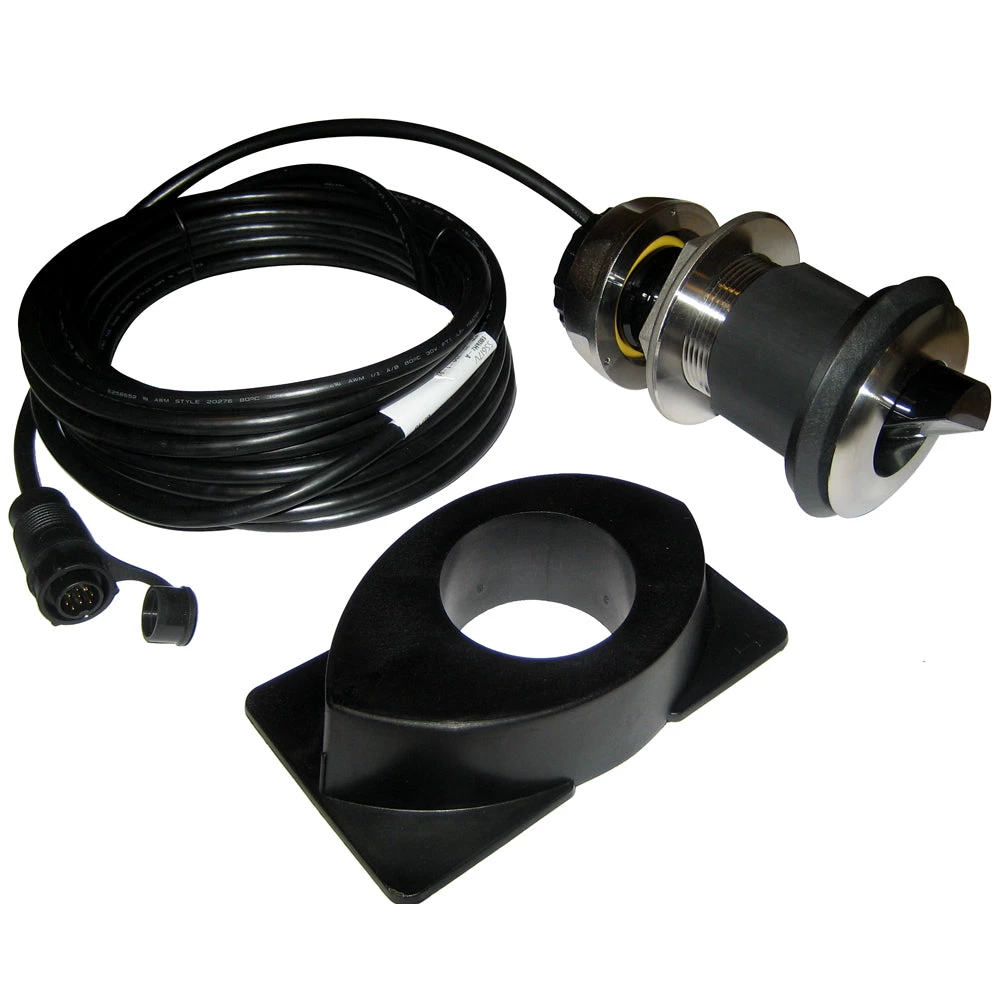

Navico ForwardScan Transducer Kit W/Sleeve & Plug [000-11674-001]

ForwardScan® Transducer Kit with Sleeve & Plug

Know what lies ahead, with ForwardScan. This forward-looking sonar provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly-charted waters with confidence. With real-time updates and a forward-looking view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safer day on the water.

The ForwardScan transducer is compatible with Simrad NSS evo2 and NSO evo2 MFD systems, and can be easily installed on almost any craft.

Features:

• Easy to use
• Forward-looking 2D sonar imaging
• Bottom Color Tracking for a simplified bottom view
• Heading Line View combines ForwardScan depth data into heading line on charts
• Shallow depth alarm
• Maximum forward view of 8X current depth, nominally 4-5X current depth
  Operates at 180kHz, reducing interference from traditional 200kHz echosounders
• Built-in temperature sensor
• 50.8mm (2″) stainless steel through-hull fitting
• Connects directly to Simrad NSS evo2, or NSO evo2 via SonarHub sounder module

Specifications:

• Temperature: Yes
• Mounting Style: Thru-Hull
• Box Dimensions: 5″H x 8″W x 12″L WT: 4.8 lbs
• UPC: 9420024133194
