MotorGuide R3-40 Hand Control Transom Mount – 03MT – 40lbs-36″-12V [940100160] Trolling Motors

R3-40 Hand Control Transom Mount – 03MT – 40lbs-36″-12V

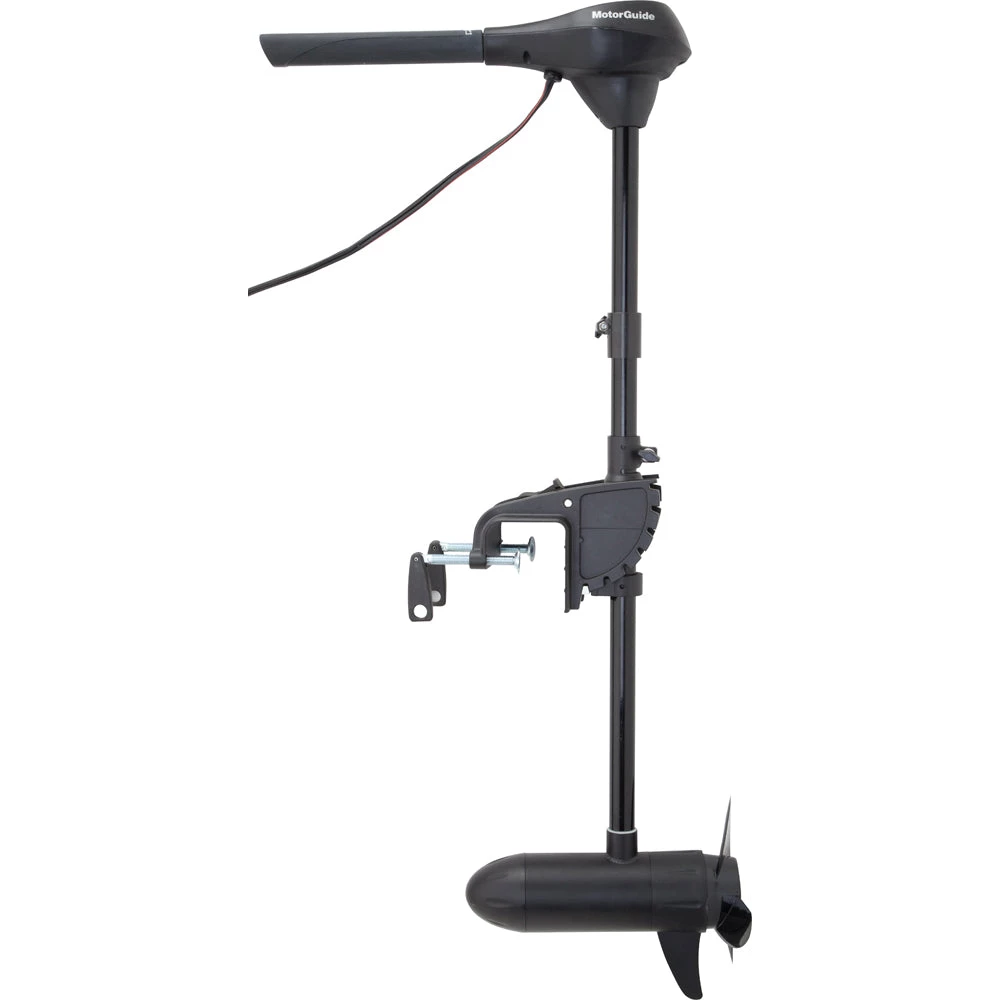

The R3 Transom mount is the ultimate in strength, rigidity and durability. The aluminum alloy construction and stainless steel hinge pins make it one of the most powerful and durable trolling motors available. A classic 5 speeds forward/2 speeds reverse controls and reversible motor head create a dependable yet versatile motor. Put the control at your fingertips with the R3’s ergonomic extending handle and a durable multi-position angle adjustment aluminum mount.

The R3 transom mount features aluminum alloy construction with a rugged powder coat finish.

Industry Leading Transom Mount
The R3 transom mount features aluminum allow construction with a rugged powder coat finish. Stainless hings pins provide the ultimate in strength, rigidity and durability. Includes an easy-to-use tilt/stow/deploy mechanism and swing over knobs on the clamp screws, allowing you to lock the motor to the transom.

Twist-Tiller Operation
Put the control at your fingertips with the R3’s ergonomic extending handle and a durable multi-position angle adjustment aluminum mount.

Features:

• 5 speeds forward and 2 reverse
• Reversible motor head for bow or transom mount operation
• Quiet, smooth operation lets you get closer to the fish
• Ergonomic, extending handle puts control at your fingertips
• Taper-Lock Mount with 7-point adjustment
• Black painted aluminum shaft
• Solid aluminum and steel lower unit with powder coat finish
• Stainless steel propeller shaft
• Powerful lower unit runs cooler and lasts longer
• One-touch, rapid slide-depth adjustment collar

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage – Input Range (Volts): 12v
• Built-In Transducer: No
• Thrust (Pounds): 40 lbs
• Salt Water/Fresh Water: Fresh
• Shaft Length (Inches): 36″
• Mounting Style: Transom
• Control Type: Twist Tiller
• Autopilot: No
• Series: R3
• Box Dimensions: 6″H x 16″W x 47″L WT: 22.8 lbs
• UPC: 022697940209

Owner’s Manual (pdf)
