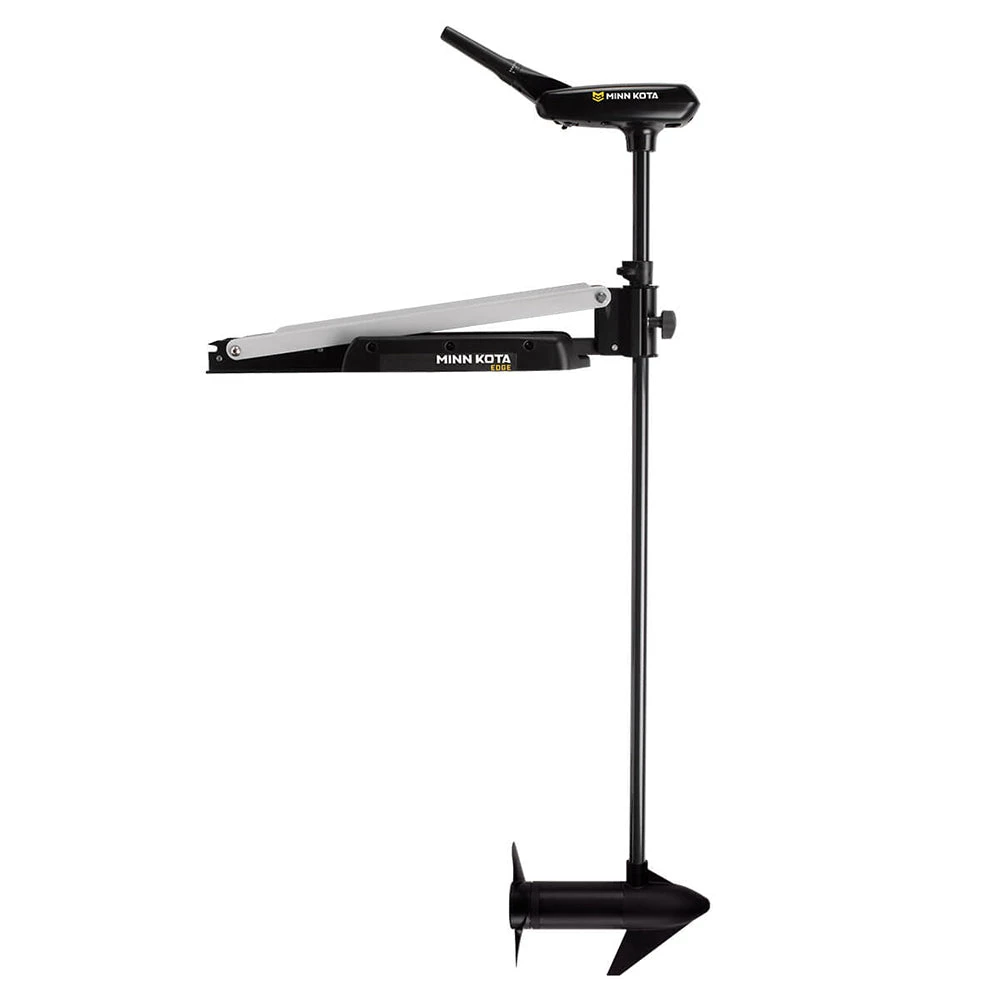

Minn Kota Edge 55 – Hand Control – 12V-55lb-52″ [1355963]

Edge 55 – Hand Control – 12V-55lb-52″

Don’t let the size fool you. Edge’s compact mount is built with extruded, anodized aluminum for rugged, no-nonsense strength. Add a rock-solid Latch & Door mount and an impact resistant composite head, and you have a motor that’s perfect for smaller boats and big days on the water.

Features:

• Latch & Door Bracket: This bracket gives you a rock-solid hold while stowing your trolling motor and makes for easy removal at the end of the day.
• Heel-Toe / Cable-Steer Foot Pedal: Get heel/toe control of your motor with this ultra-responsive foot pedal that includes speed control, and momentary and constant on/off. Made with a high-impact composite material for unparalleled durability.
• 5-Speed Settings: Choose from five speed settings to dial in the right speed control when you’re trolling.

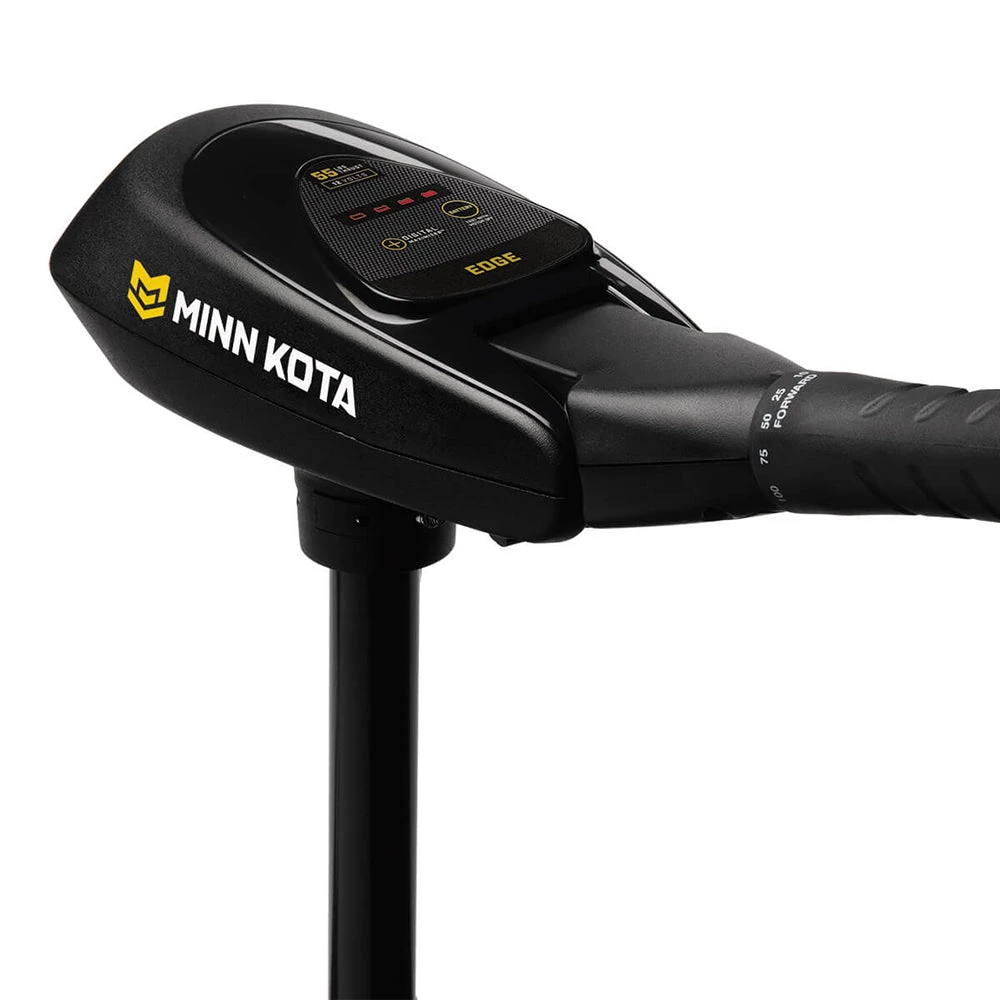

• Directional Indicator: Easy-to-read directional indicator is built into the top of the trolling motor head on Edge foot control models.
• Power Prop: For 3-1/4″ motor diameters, this prop delivers extra power to push throw heavy vegetation. Includes prop pin, nut and washer.
• Indestructible Composite Shaft — Guaranteed for Life: At the core of your Minn Kota trolling motor is an indestructable composite shaft. It’s a Minn Kota exclusive, and we guarantee it for life.
• Cool, Quiet Power: Every Minn Kota lower unit runs cool to extend trolling motor life, and stays quiet.
• What’s Included: Edge 55 lb. 52″ hand-control motor, MKP-32 Prop, Hold Down Strap and Mounting Hardware

Specifications:

• Control: Hand
• Volts: 12
• Max Thrust: 55 lbs.
• Shaft Length: 52″
• Speed Control: 5-Speed
• Max. Amp Draw: 50
• Prop: Power Prop (MKP-32)

Specifications:

• Autopilot: No
• Control Type: Tilt Twist Tiller
• Included Propeller: MKP-32
• Mounting Style: Bow
• Salt Water/Fresh Water: Fresh
• Series: Edge
• Shaft Length (Inches): 52″
• Thrust (Pounds): 55 lbs
• Built-In Transducer: No
• Voltage – Input Range (Volts): 12v
• Box Dimensions: 9″H x 20″W x 67″L WT: 45 lbs
• UPC: 029402047802

Owner’s Manual (pdf)
