Marine Lighting RIGID Industries SR-Series PRO 6″ Lightbar – Diffused LED – Black Housing [906513]

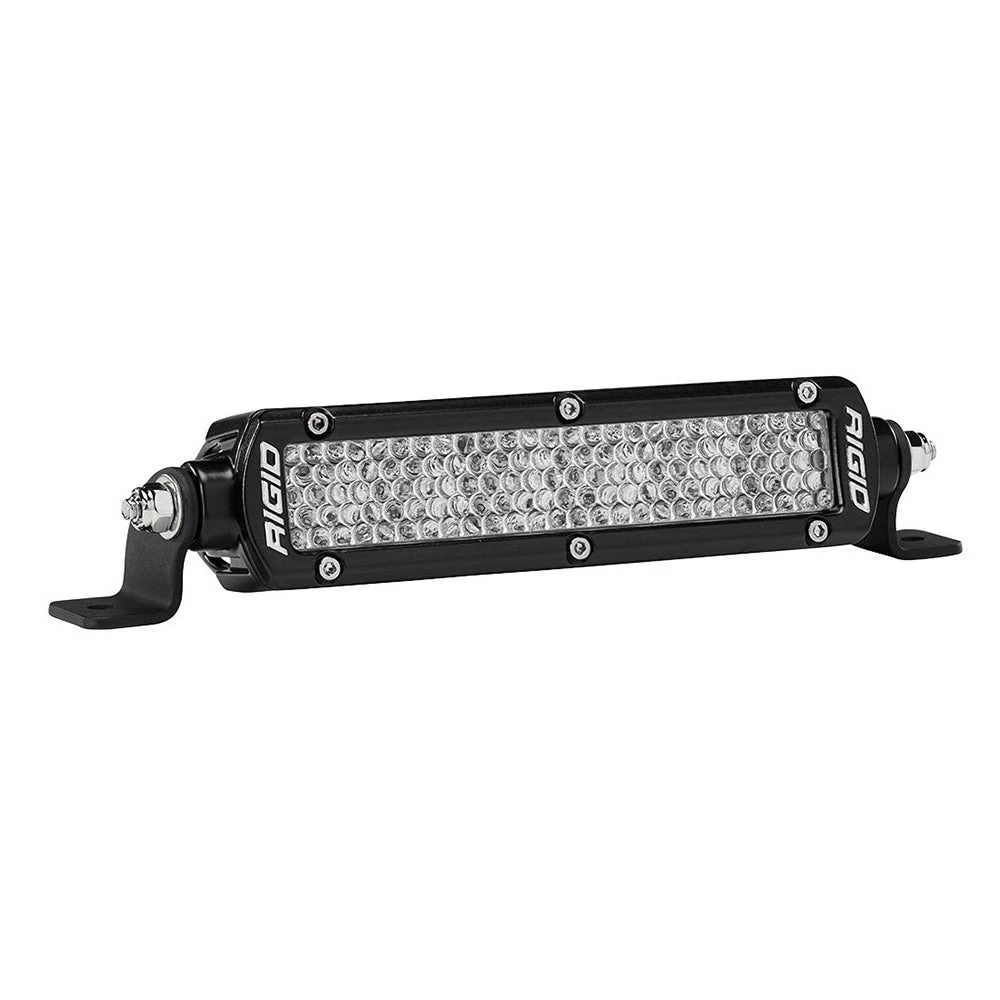

SR-Series PRO 6″ Lightbar – Diffused LED – Black Housing

The SR-Series PRO LED Light Bars provide a sleek, low profile lighting solution that measures less than 2″ tall. Thanks to improved LED technology, the SR-Series PRO now offers more light output than ever before with up to 111% more raw lumens. As the name implies, the SR-Series PRO utilizes a single row of LEDs with your choice of Hybrid or patented Specter optics in a variety of beam patterns. Ideal for applications where space is limited, the SR-Series PRO is a powerful light source designed to project light at extreme distances while consuming very little power.

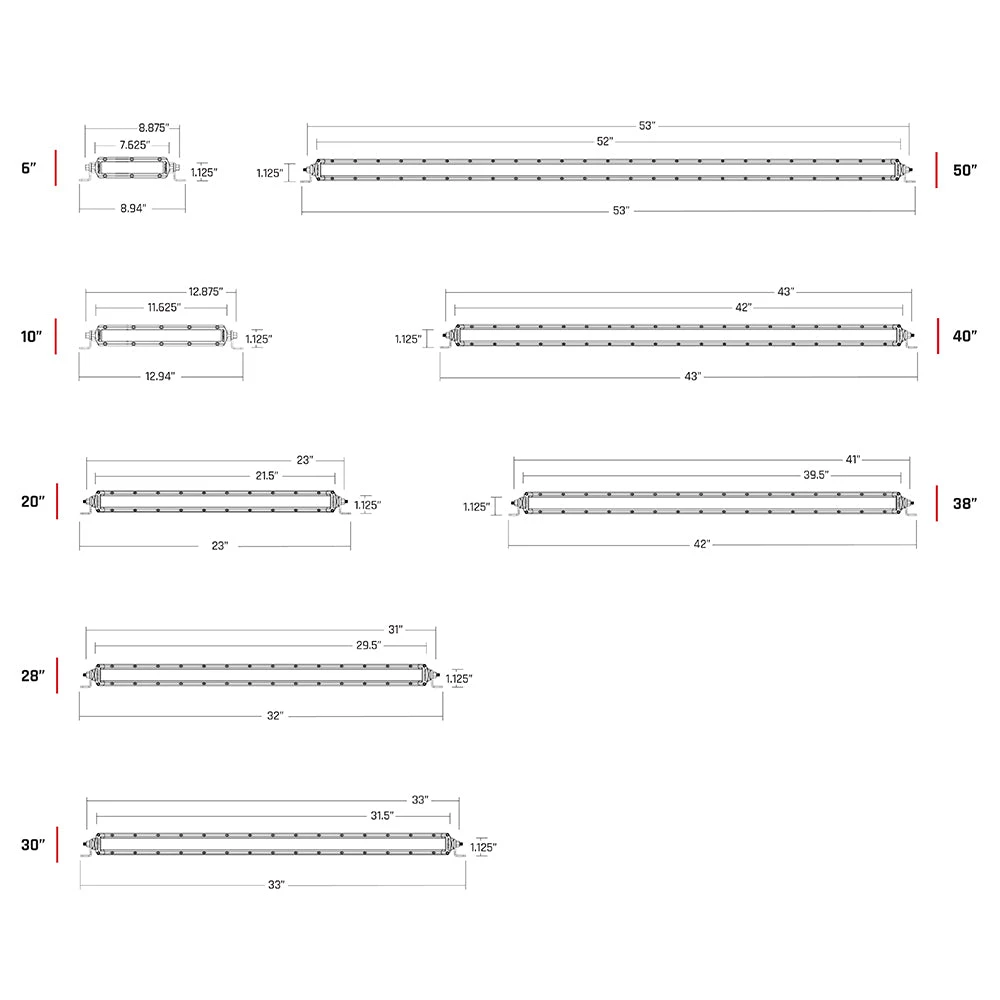

Available in a wide range of lengths and configurations, these LED light bars can be used on virtually any application, whether it’s an off-road vehicle, industrial, agricultural, or marine.

The SR-Series PRO lights utilize extruded aluminum housings and are available with either a black or white durable powder coated finish. Along with improved LEDs for more output, the SR-Series PRO benefits from new branding and blacked-out circuit boards for a more refined look. They feature the same superior build quality as the rest of RIGID’s lighting products, providing reliable and efficient lighting on demand.

Features:

• Less than 2″ Tall
• Blacked-Out Circuit Board
• Harness & Switch Included (Exclusions Apply) High-Grade Aluminum Alloy Heatsink
• IP68 Compliant -Dust / Water Ingress
• 50,000+ Hour Lifespan
• 9-36 V DC
• Patented Technology
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System

Specifications:

• Watts: 47
• Amp Draw: 3.36
• Raw Lumens: 4752
• Lux @ 10M: 21.26
• Beam Distance @1Lux: 46.10
• Beam Distance @.25Lux: 92.20

∗ Sold as an Individual

Specifications:

• Bulb Watts: 47w
• Voltage – Input Range (Volts): 36v
• LED: Yes
• Box Dimensions: 6″H x 6″W x 9″L WT: 3.35 lbs
• UPC: 849774029752
