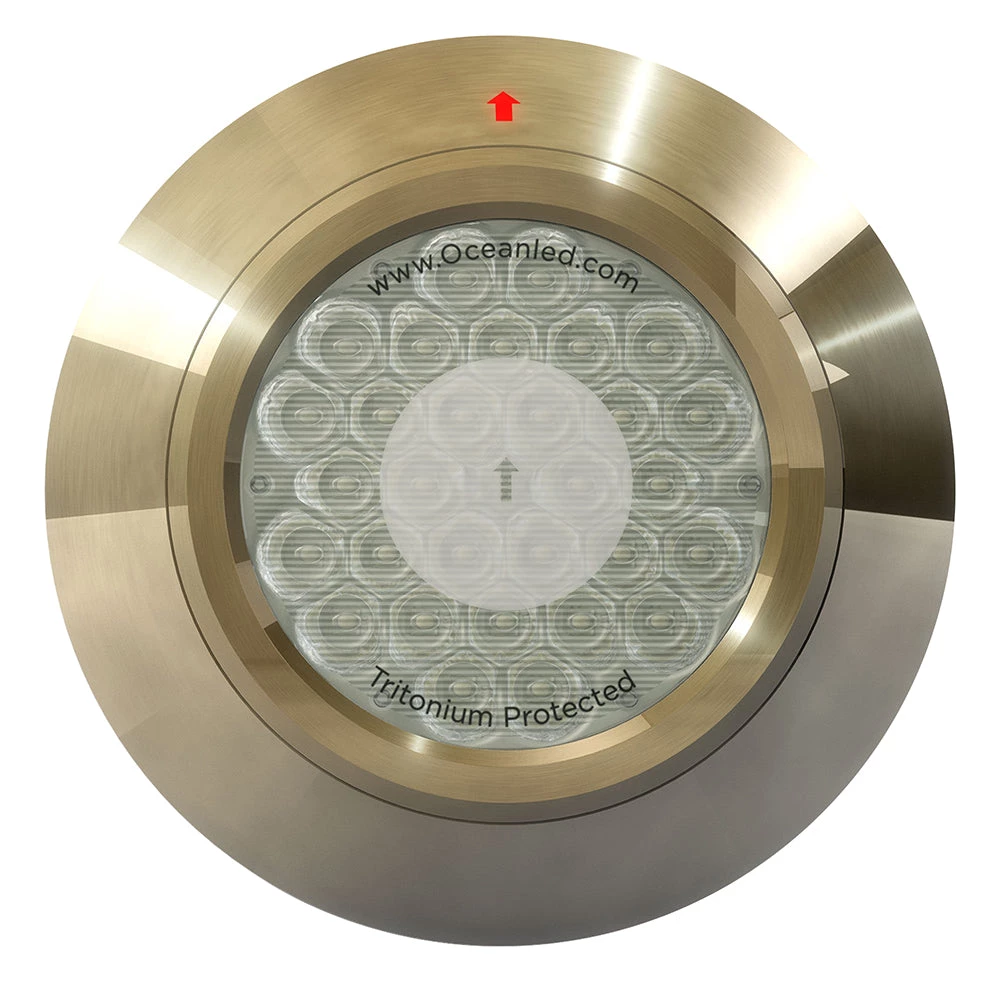

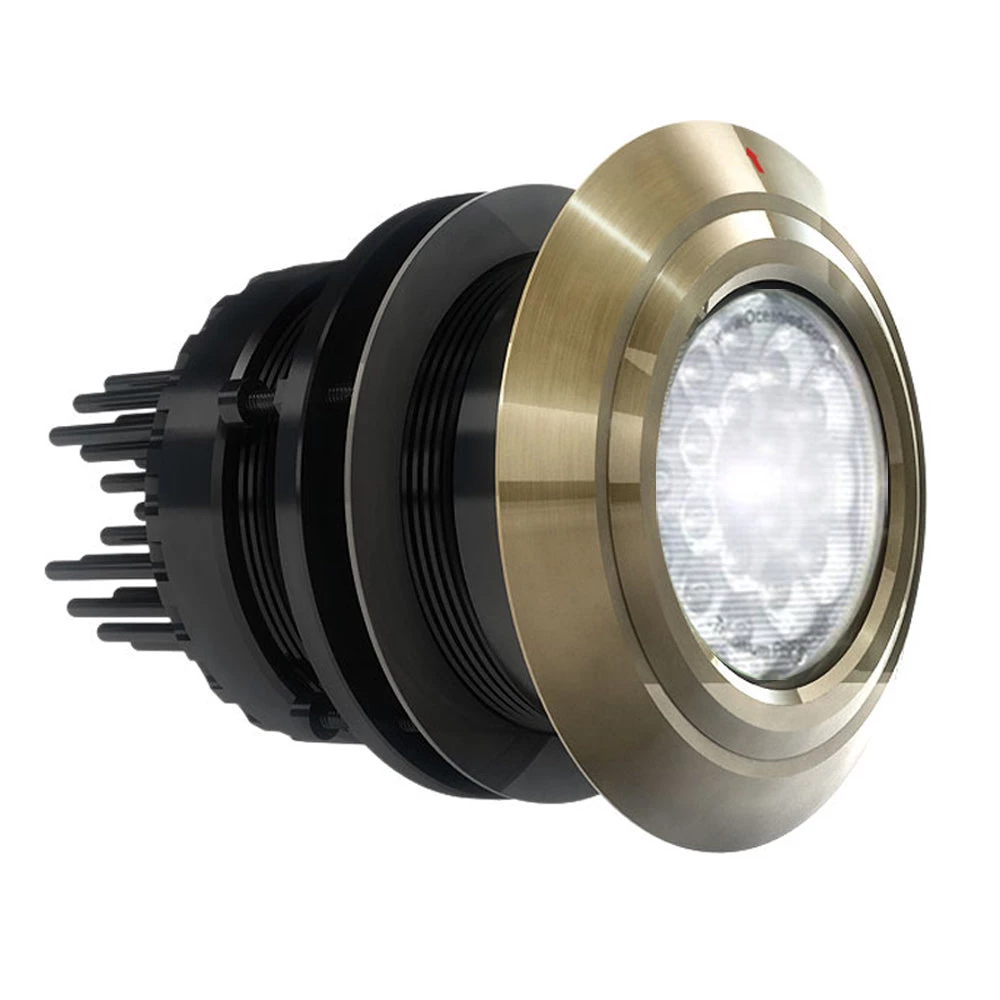

Marine Lighting OceanLED 3010XFM Pro Series HD Gen2 LED Underwater Lighting – Ultra White [001-500748]

Pro Series XFM HD Gen2

XFM models, or Xchangeable Flush Mounts, are just that – they’re exchangeable without hauling should servicing ever be needed. Their exceptionally low profile head offers virtually unlimited hull mounting options, including retrofitting into most existing underwater lighting hole cut-outs, yielding immediate benefits of no startup power surge, low heat, minimal maintenance, and improved light output.

At 10,000-fixture lumen brightness the 3010XFM HD Gen2 model is 43% brighter
than its predecessor by exploiting the next generation of High Definition LEDs from Cree.

Suitable for all hull types over 65′ (20m) using 4 or more lights with spacing of 3-6′ (1-1.8m) – for metal hulls, add the Delrin Isolation Sleeve accessory. Deutsch plugand- play quick connectors make this light a quick fit. Maintenance is easy; just wipe away marine growth from its scratch resistant Tritonium glass lens. Three super bright LED color options.

For a light that’s less bright choose 2010XFM HD Gen2. For a light with a smaller hole cut-out better suited for transom mount applications choose 3010TH. For a light with color-change capabilities choose from our Colours models.

• 12/24vDC (AC Upgrade Available)
• 40,000+ Hour Life
• Tritonium™ Marine Growth Protection
• Plug & Play
• Aluminium Bronze AB2
• Factory Sealed
• Reverse Polarity Protected

Mounting Recommendations:
Boat Size:up to 65′ (20M)
Transom Spacing:3-6′ (1.0-1.8M)
Transom Quantity: 4+
Hull Spacing:4-8′ (1.2-2.4M)
Installation Depth (to top of fixture): 10-12″ (250-300mm)

Technical
Light Output Equivalent To: 2x100W HID Metal Halides
Fixture Lumens (total light output from a finished fixture): 10,000
Current/Amp Draw (DC) (AC Upgrade Available): 12VDC 10A / 24VDC 5A
Current/Amp Draw (AC): 110VAC 50/60HZ 1.3A / 240VAC 50/60HZ 0.6A

Specifications:

• Mounting Style: Thru-Hull
• Color: White
• Material: AB2 Aluminum Bronze
• Box Dimensions: 9″H x 11″W x 12″L WT: 16.9 lbs
• UPC: 5051803005605

Quick Guide (pdf)
