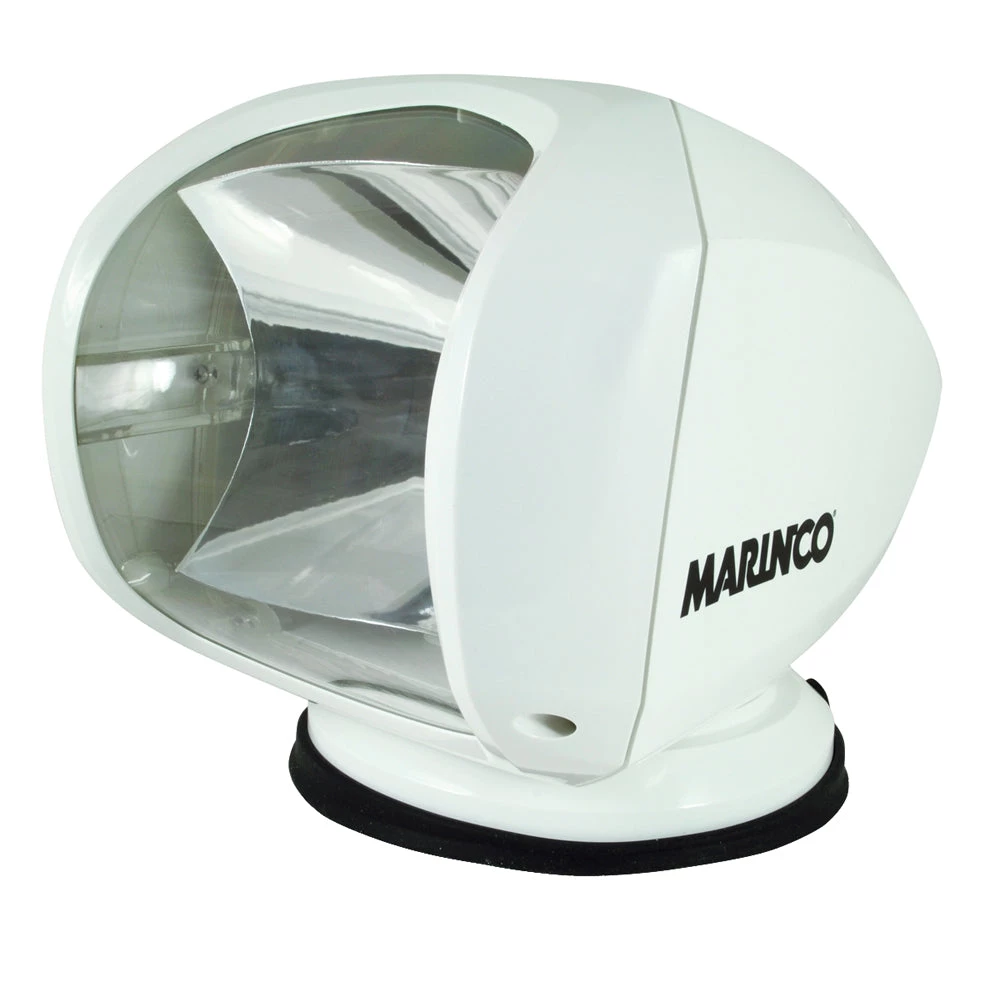

Marine Lighting Marinco SPL-12W Wireless Spot Light – 100W – 12/24V – White [SPL-12W]

Wireless Remote Spot Light

• Universal 12/24V circuit with bright 100W, H3 halogen bulb
• UV resistant, IP56 Weatherproof ABS housing and Lexan® lens
• O-ring sealed housing, designed for the harsh marine environment – moisture, salt, shock and vibration tested
• Universal snap-in mounting system (can be mounted upside down)
• Super-quiet, all-weather motor with limit stops provides a full range of coverage
• 370° sweep and 120° Tilt (75° up and 45° down)
• One touch auto sweep and S.O.S. function
• Wireless dash mount remote standard; (hard wired & handheld remotes are optional)
• 3-Year limited warranty

Bulb: 100W, H3 Halogen
Power (Input voltage): 12/24V
Current draw (idle/in use): 0.03 amps / 7.0 amps
Peak Beam Intensity: 210,000 Cp
Peak Beam Distance: 917′ (280M)
Lux @ 66′ (20M): 525 Lux
Coverage at 66′ (20M): 132 sq ft (12 sq m)
Rotation: 370° (built in limit stops)
Tilt: 120° Tilt (75° up & 45° down)
Wireless range: 200′ (65M)
Dimensions: 7.5″W x 7.5″H x 9.25″D (19cm x19cm x 23.5cm)
Weight: 3.30lbs (1.5 kg)
Housing material: UV resistant PC/ASA
Lens material: UV resistant Lexan®
Operating temp range: 5°F – 113°F (-15°C -45°C)
IP Rating: IP56

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Wireless: Yes
• Voltage – Input Range (Volts): 12/24v
• Candle Power: 210,000
• Bulb Watts: 100w
• LED: No
• Box Dimensions: 8″H x 9″W x 10″L WT: 4.6 lbs
• UPC: 093344050947

Quick Guide (pdf)
Owner’s Manual (pdf).embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }
