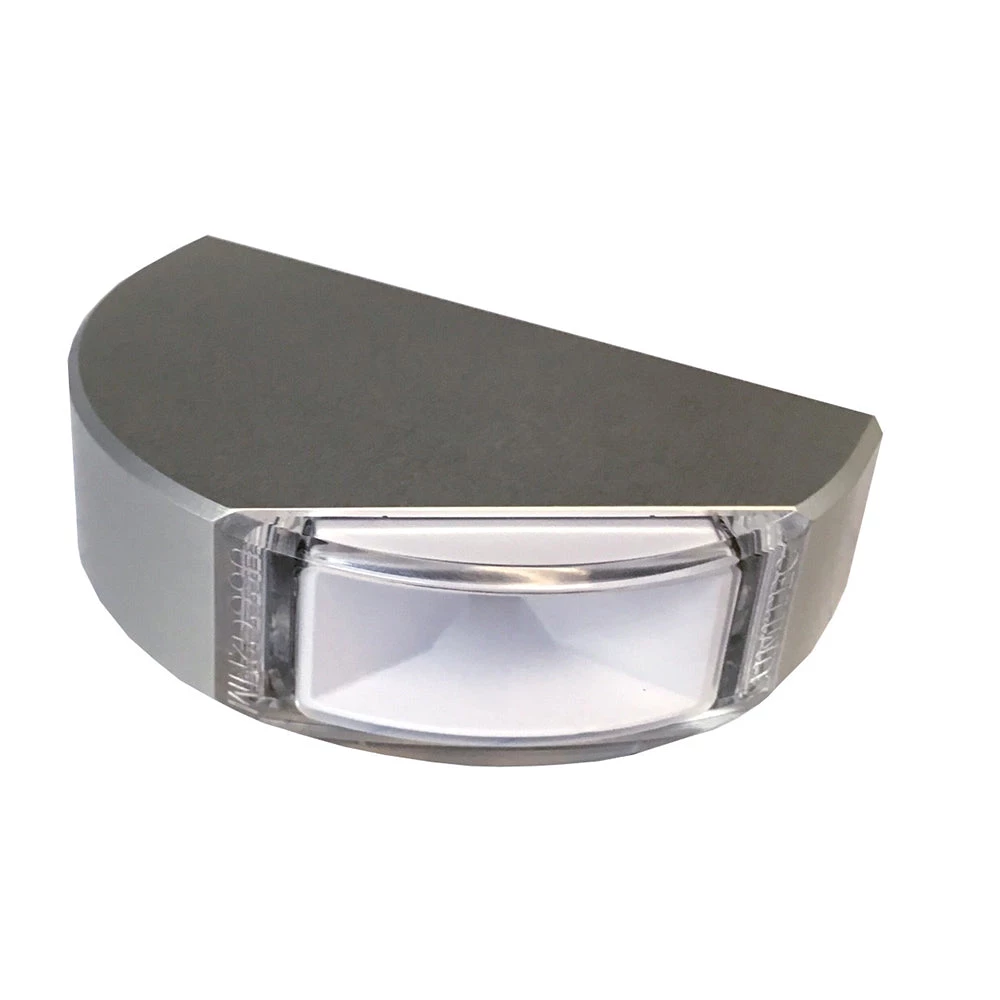

Marine Lighting Lumitec Surface Mount Navigation Light – Classic Aluminum – Port Red [101577]

Surface Mount Navigation Light – Classic Aluminum – Port Red

For retrofit and new applications where a molded-in pocket is not possible or practical, Lumitec offers our surface mount navigation lights. Clean styling and unmatched reliability. Choose classic aluminum half-round design for mounting to vertical surfaces, or the more contemporary composite version for horizontal mounting surfaces.

Features:

• Output: Port Red
• Visibility: USCG2NM
• Voltage: 10-30V DC
• 12V DC Amps: 21-26mA
• 24V DC Amps: 13-15mA
• Conforms to: ABYC A16

Specifications:

• Housing: Aluminum
• Lens Color: Red
• Visible Range (Miles): 2nm
• Voltage – Input Range (Volts): 12/24v
• LED: Yes
• Box Dimensions: 4″H x 5″W x 7″L WT: 0.6 lbs
• UPC: 089300015778

Brochure (pdf)
