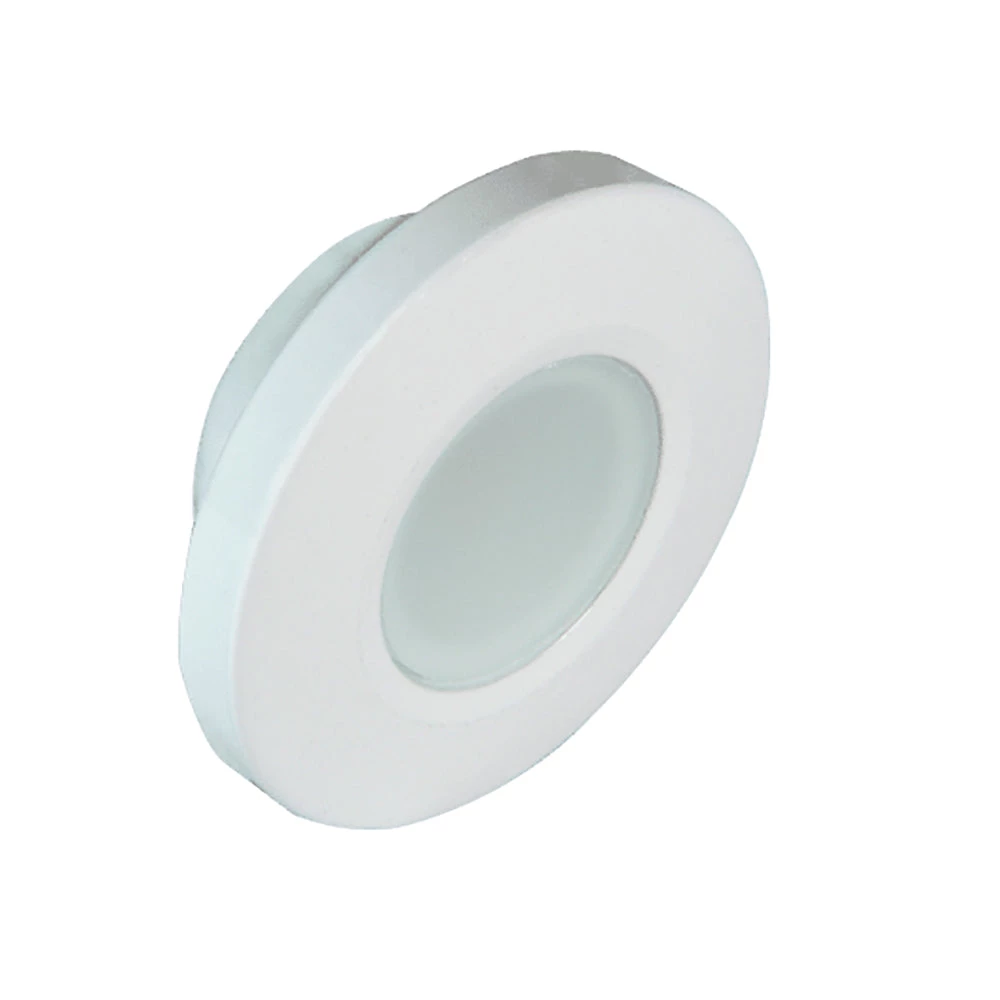

Marine Lighting Lumitec Orbit – Flush Mount Down Light – White Finish – White Non-Dimming [112523]

Orbit – Flush Mount Down Light – White Finish – White Non-Dimming

Class-leading output, weatherproof construction, and the simplest installation in the industry – Lumitec’s Orbit Flush Mount Down Lights stand apart from the crowd. With a shallow-depth profile (less than 1/2″ mounting depth) and a secure composite mounting system the lights are ideal for salons and staterooms, as well as helm stations, flybridges and hard tops. Fully sealed and IP67 compliant. Intelligent circuitry enables advanced features like dimming and multi-color control without external control modules, specialized switches, or additional wire runs.

Specifications:

• Voltage: 10 – 30V DC
• 12V DC Amps: 315mA
• 24V DC Amps: 175mA
• Correlated Color Temperature: 5000
• Color Rendering Index: 70+
• Rated Watts: 4
• Lumens (White): 136
• Operating Temp (°F): -31 to + 131 F
• Operating Temp (°C): -35 to +55 C
• Width: 1.99″ (5.05cm)
• Height: 1.99″ (5.05cm)
• Depth: 0.72″ (1.82cm)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage – Input Range (Volts): 10-30v
• Dimming: No
• Housing: White
• LED Color: White
• LED: Yes
• Box Dimensions: 3″H x 3″W x 3″L WT: 0.3 lbs
• UPC: 089300103314

Quick Guide (pdf)
Brochure (pdf)
