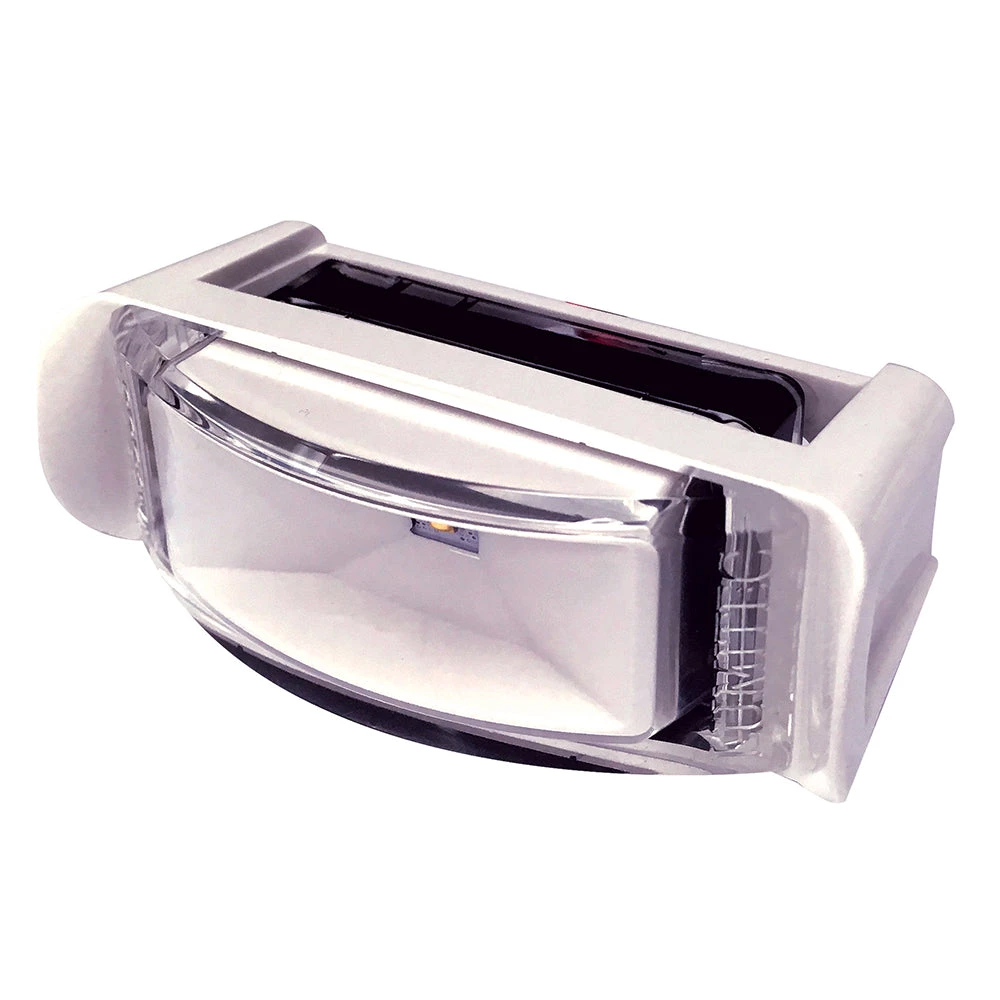

Marine Lighting Lumitec Contour Series Inset Navigation Light – Starboard Green [101575]

Contour Series Inset Navigation Light – Starboard Green

Contour’s Drop-in series leverages a single, symmetrical universal pocket profile molded into the hardtop during manufacture. Mating draft angles and part radii have been carefully considered. Low profile, no exposed fasteners, and a clean, modern monochromatic design. Sold as Port, Starboard, or Stern.

Features:

• Output: Starboard Green
• Visibility: USCG2NM
• Voltage: 10-30V DC
• 12V DC Amps: 18-26mA
• 24V DC Amps: 12-15mA
• Conforms to: ABYC A16

Specifications:

• Housing: White
• Lens Color: Green
• Visible Range (Miles): 2nm
• Voltage – Input Range (Volts): 12/24v
• LED: Yes
• Box Dimensions: 1″H x 3″W x 3″L WT: 0.1 lbs
• UPC: 089300015754

Brochure (pdf)
