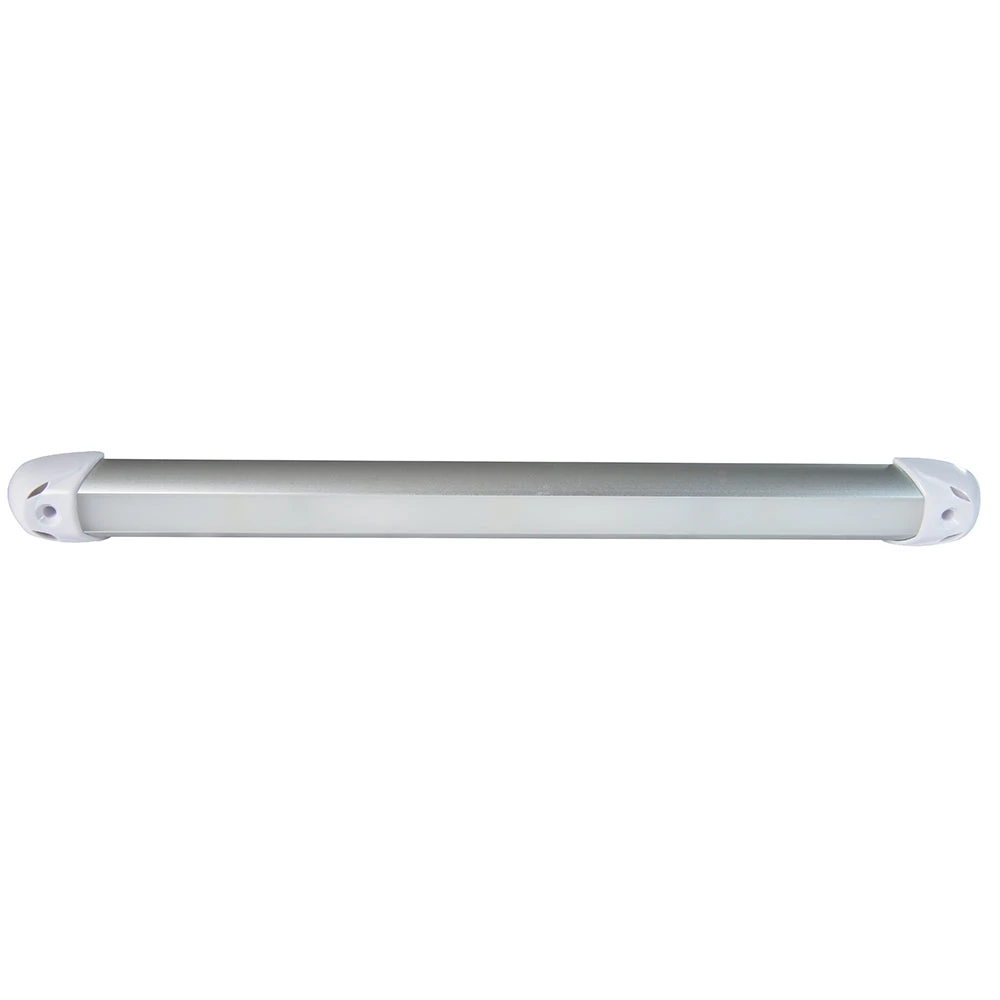

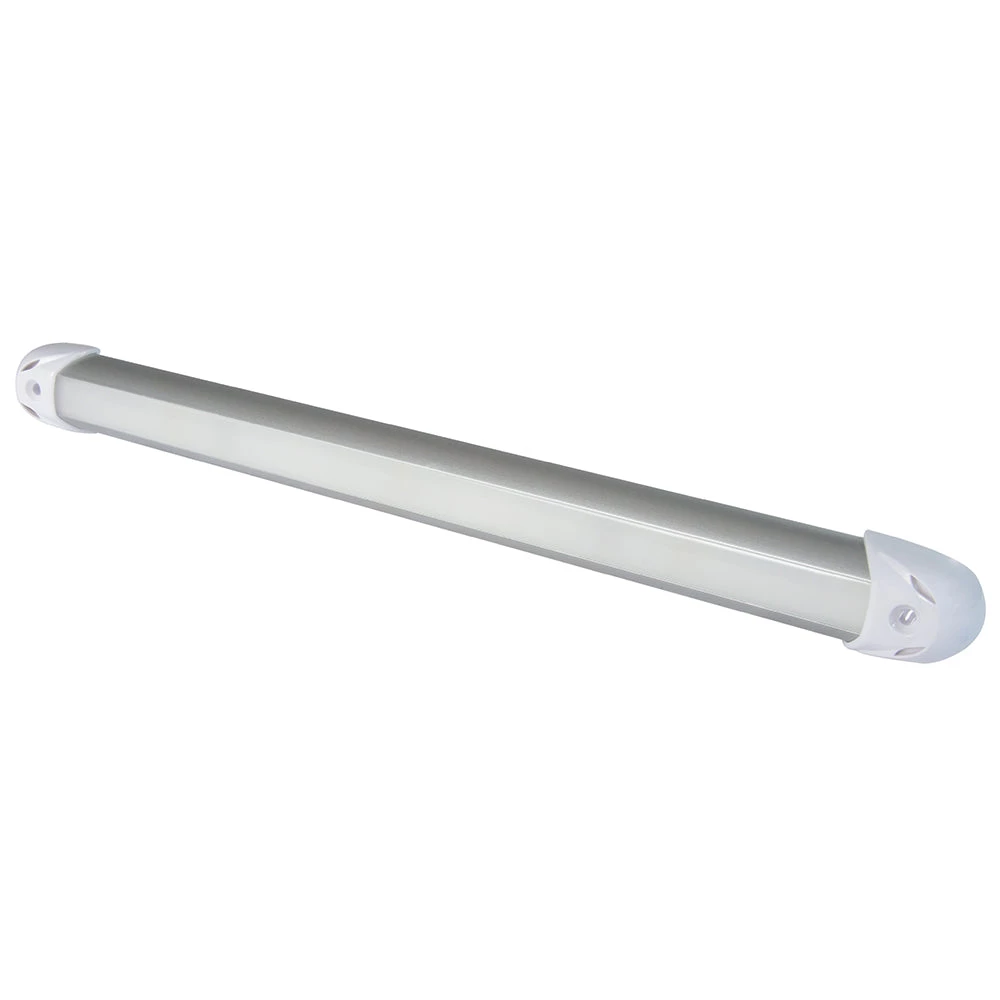

Lumitec Rail2 12″ Light – White/Red Dimming [101082]

Rail2 12″ Light – White/Red Dimming

Lumitec’s original rail light amazed customers when it was first introduced in 2008. With up to 3 times greater output than its predecessor and a sleek new look, Rail2 raises the bar. The integrated microprocessor controls dimming and color change from two wires, with no external control modules. As with all Lumitec luminaires, the Rail2 is IP67 compliant, which means despite its great looks it is just at home on a spray-drenched hard top as a teak-adorned salon. Proudly made in the USA.

Specifications:

• Voltage: 10 – 30V DC
• 12V DC Amps: 920mA
• 24V DC Amps: 430mA
• Correlated Color Temperature: 5000
• Color Rendering Index: 70+
• Rated Watts: 12
• Lumens (White): 490
• Operating Temp (°F): -31 to + 131 F
• Operating Temp (°C): -35 to +55 C
• Width: 11.72″ (29.76cm)
• Height: 1.11″ (2.82cm)
• Depth: 0.60″ (1.53cm)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Bulb Type: LED
• Voltage – Input Range (Volts): 10-30v
• Housing: White
• LED Color: White/Red
• Dimming: Yes
• Box Dimensions: 1″H x 3″W x 15″L WT: 0.3 lbs
• UPC: 089300103451

Quick Guide (pdf)
Brochure (pdf)
