Lowrance TotalScan Skimmer Transom Mount Transducer [000-12568-001]

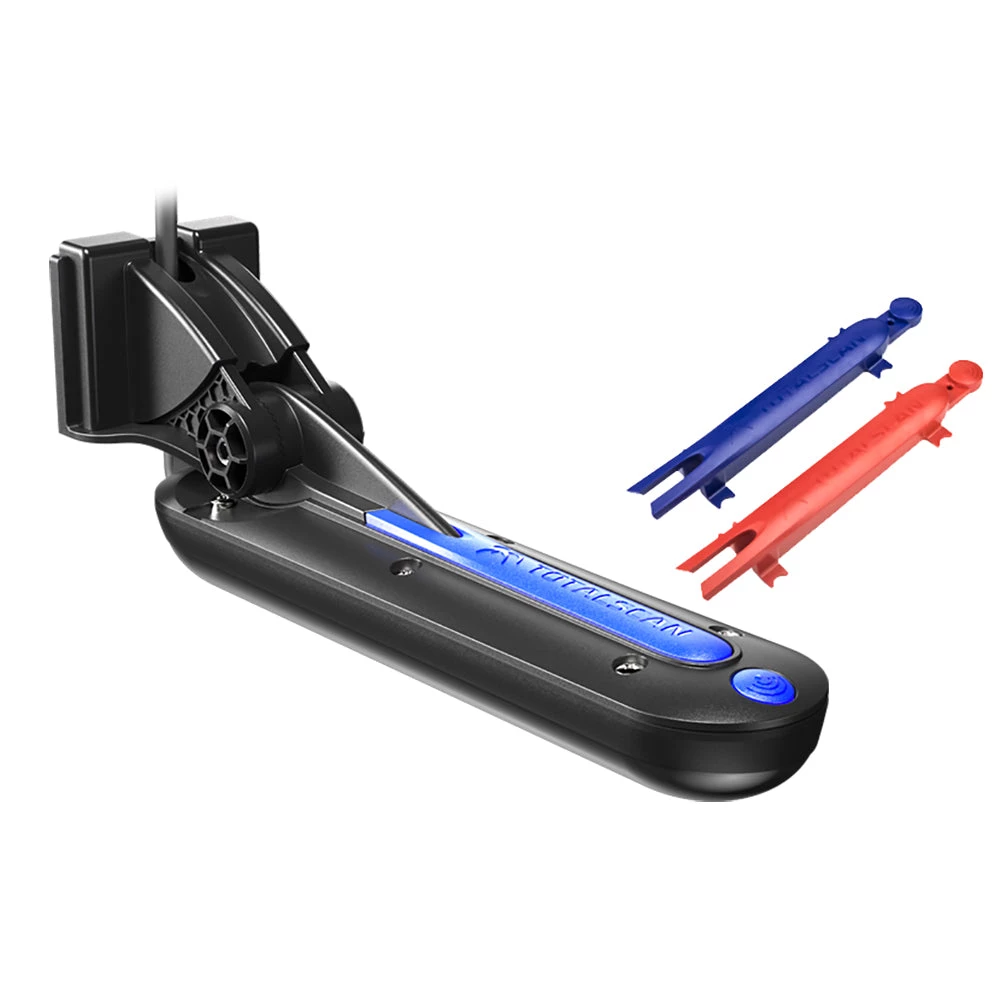

TotalScan™ Transom Mount transducer

An all-in-one transducer that matches proven CHIRP sonar with StructureScan® HD and DownScan Imaging™ technology, making it possible to target fish and search for fish-holding structure with the same transducer.

The TotalScan transducer features multiple mounting options and is fully compatible with displays featuring integrated StructureScan HD, like Lowrance HDS Gen3, Elite-7 Ti, Elite-5 Ti, Simrad NSS evo2, and NSO evo2.

The TotalScan transducer is one of four new transducers that feature the new xSonic (9-pin black) 24ft cable.

An adapter cable will be available to connect xSonic (9-pin black) transducers to legacy displays that have a 7-pin blue connector.

Note: When a TotalScan transducer is connected to a legacy display with a 7-pin blue connector, the side-scanning feature will not function.

Features

• All-in-one transducer featuring CHIRP Sonar, StructureScan HD and DownScan Imaging
• Also supports 83/200kHz Broadband Sounder frequencies
• Supports Medium and High CHIRP Sonar frequencies
• Supports 455/800kHz StructureScan HD frequencies
• Multiple mounting options
• Fully compatible with Lowrance HDS Gen3, Elite-7Ti, Elite-5Ti, Simrad NSS evo2, and NSO evo2
• Compatible with select legacy displays (Requires xSonic transducer adapter – side-scanning sonar not supported on legacy products)

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 9
• Mounting Style: Transom
• Imagining: Standard/Down/Side
• Chirp: Medium/High
• Box Dimensions: 3″H x 10″W x 13″L WT: 3.25 lbs
• UPC: 9420024145265
