Hella Marine Surface Mount Oblong LED Courtesy Lamp – White LED – Stainless Steel Bezel [980869301] Marine Lighting

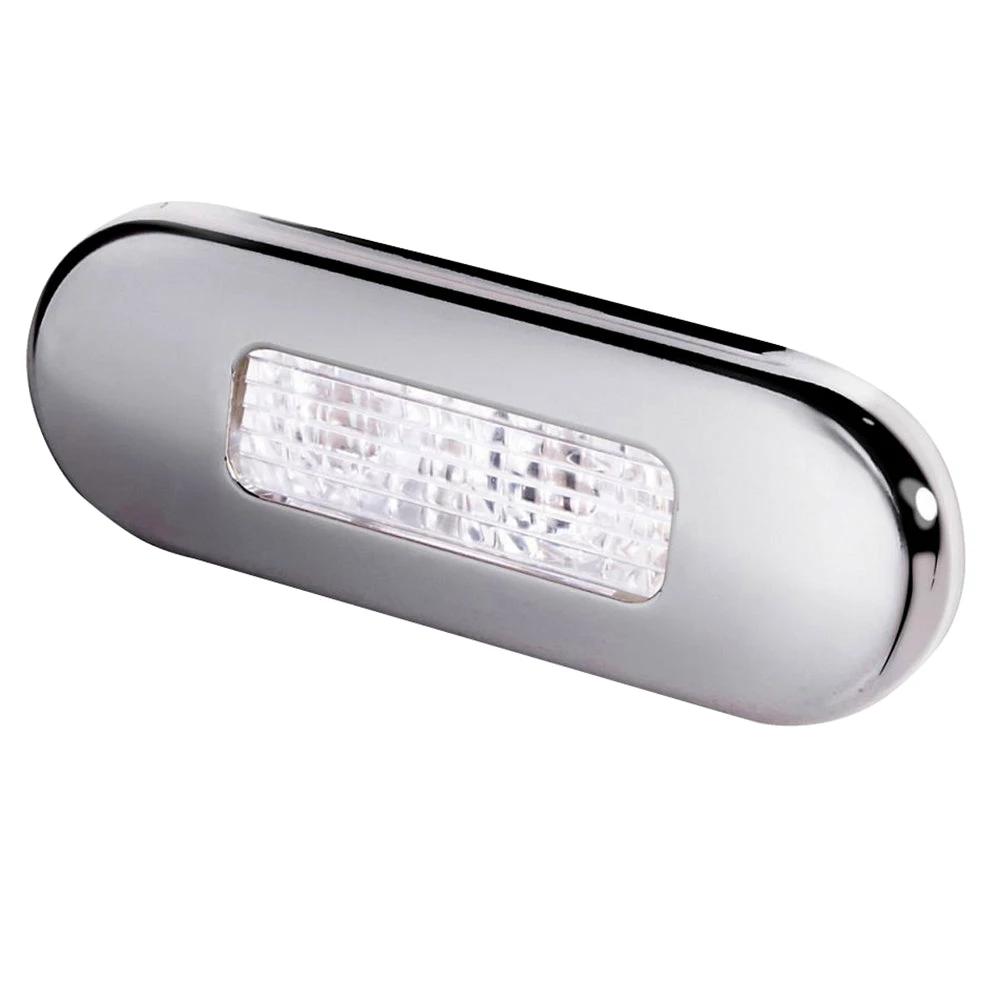

Surface Mount Oblong LED Courtesy Lamp – White LED – Stainless Steel Bezel

Oblong LED lamps are offered as either dedicated step lamps or general courtesy illumination with equal vertical spread.

Step lamps carry engineered optics to direct light downwards at 30° safely illuminating deck and step tread surfaces without shining into the eyes.

Completely sealed and ultra durable, Hella Marine LED lamps may be installed on a vessels interior or exterior, wet or dry.

Polished 316 Stainless Steel bezels are included with each part number. Black and white plastic end caps are also included.

Specifications:

• Lens Material: UV and enhanced impact resistant Grilamid
• Rim Material: 316 stainless steel
• Cable: Pre-wired with 120mm of marine cable
• Operating Voltage: Multivolt 12 / 24V DC
• Power Consumption: 0.5W ( < 0.04A@12V / < 0.02A@24V )
• Degree of Protection: IP 67 – Completely Sealed
• Mounting: Stainless steel screws included
• Weight: 35g (including cable)
• Approvals: CE

Specifications:

• Bulb Type: LED
• Voltage – Input Range (Volts): 12/24v
• Housing: Stainless
• LED Color: White
• Dimming: No
• Box Dimensions: 2″H x 4″W x 6″L WT: 0.3 lbs
• UPC: 9416325234005

Brochure (pdf)
