HEISE LED Lighting Systems Marine Lighting HEISE Infinite Series 22″ RGB Backlite Dualrow Bar – 24 LED [HE-INFIN22]

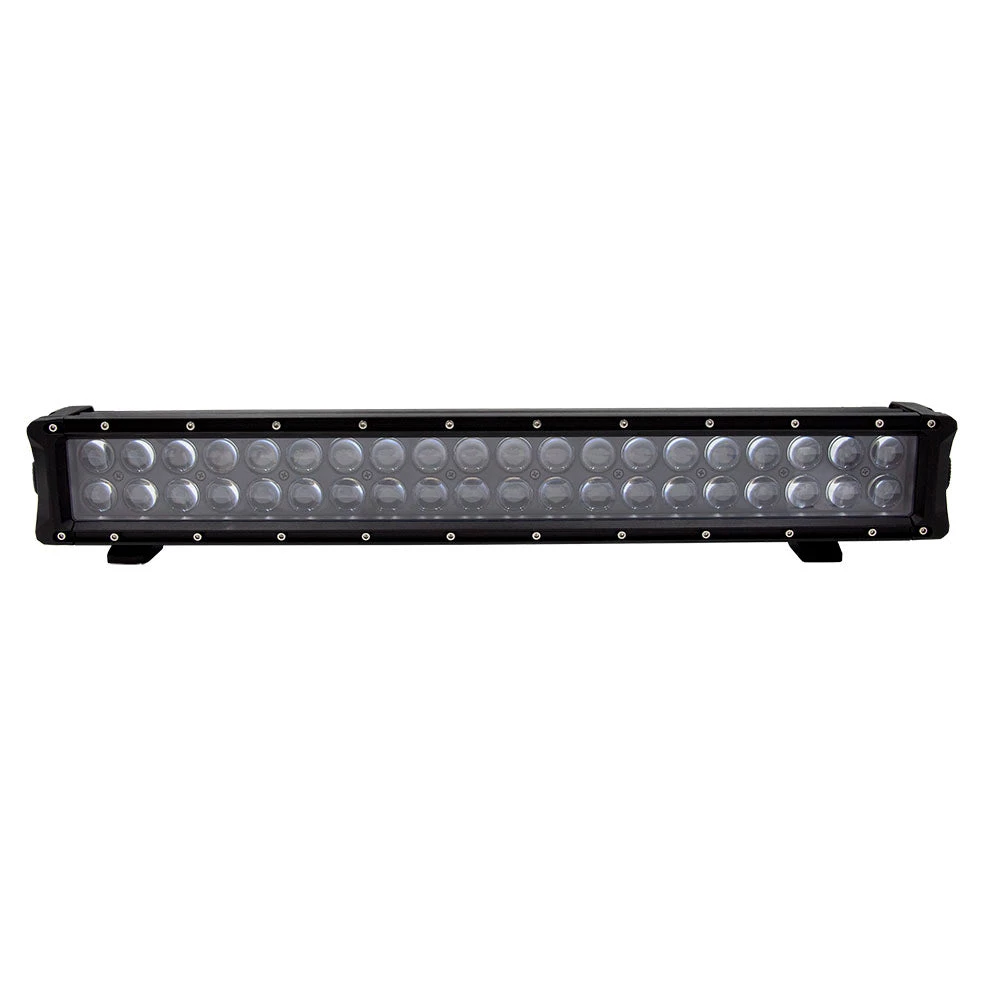

Infinite Series 22″ RGB Backlite Dualrow Bar – 24 LED

The Infinite Series offers pure white light with 16 million selectable colors as a backlight, controlled by a mobile app. The military breather port allows moisture to escape and the virtually unbreakable polycarbonate lens will withstand the toughest environments. The backlit RGB lights use the same controller as Heise’s popular RGB accent lights, allowing the Infinite Series to be synchronized and controlled using a single mobile app. The HE-CBRGB controller is sold separately and required for RGB functionality.

Specifications:

• Input Voltage: 10-30V DC
• Wattage: 60W
• Raw Lumens: 7600
• LUX @ 10M: 1150
• Color Temperature: 6000K
• Beam Pattern: Spot(8°)

Construction:

• Housing Material: Die–cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Hole Dimensions: Brackets turned inward – 21.25″
• Brackets turned outward – 23.5″
• Mounting Bolt Drill – .25″
• Height of Light Bar Itself: 4.8″
• Depth of Light Bar Itself: 3.50″
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40°C to +60°C
• Current Consumption: 4.34 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Beam Pattern: Spot
• Housing: Black
• Length (Inches): 22″
• Voltage – Input Range (Volts): 10-30v
• Box Dimensions: 6″H x 6″W x 26″L WT: 7.6 lbs
• UPC: 086429368433
