HEISE LED Lighting Systems Marine Lighting HEISE 4 LED Cube Light – Flood – 3″ [HE-HCL2]

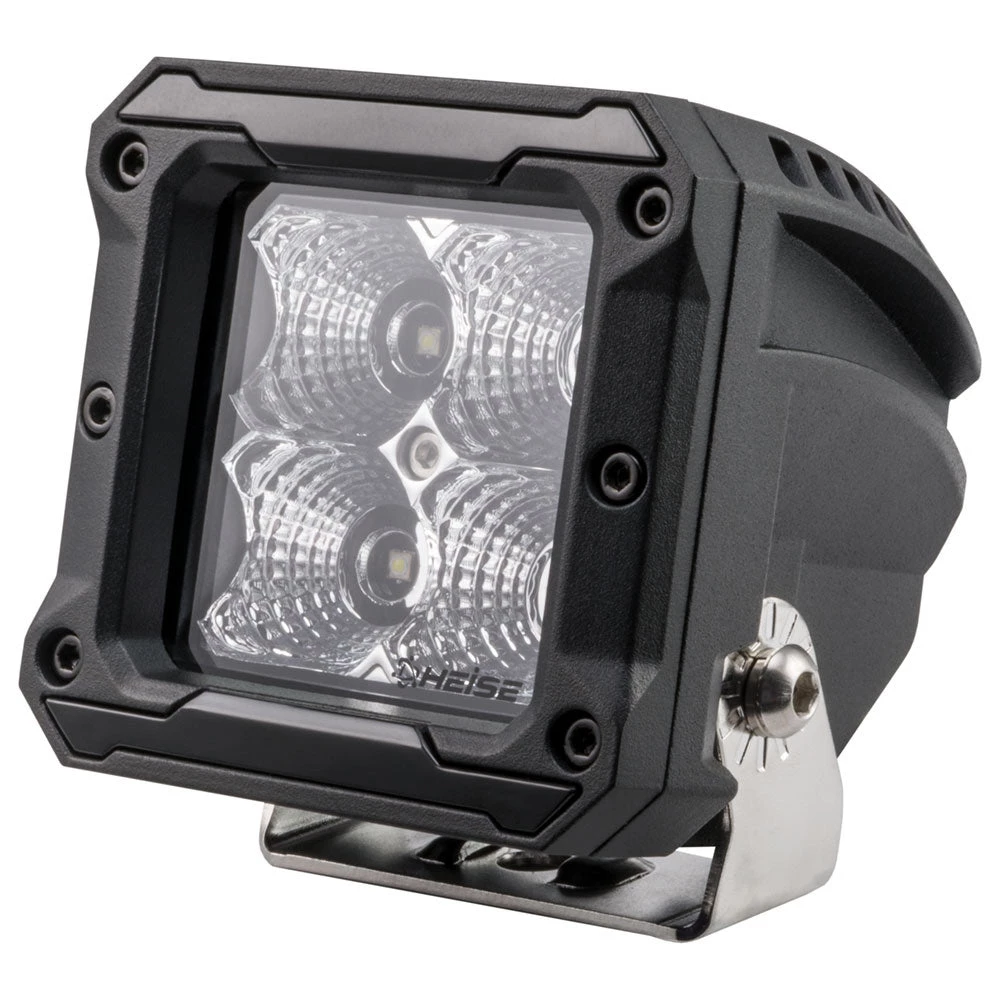

4 LED Cube Light – Flood – 3″

Illuminate the night with the high-power, compact Heise 3 Inch LED Cube Light (E-HCL2). Integrated-epoxy encapsulated electronics, a virtually unbreakable polycarbonate lens and aluminum housing construction makes these cube lights ideal for any application. IP68 rated to withstand the worst environments. These bright cube lights provide 960 raw lumens from four 3-watt OSRAM LEDs. The 90 degree flood beam pattern offers a wider angle of illumination. Colored accent caps are included to customize your light cube housing. It can get hit, shaken, banged up and wet – without fear of failure.

SPECS

• Input Voltage: 10-30V DC
• Wattage: 12W (4-3W OSRAM LEDs)
• Lumens: 960
• Lux @ 10M: 32 Raw
• Color Temperature: 6000K
• Beam Pattern: 90° Flood

CONSTRUCTION

• Housing Material: Die-Cast Aluminum Housing
• Housing Color: Dark Gray
• Lens Material: PC
• Mounting Bracket: Stainless Steel
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: 40°C to +60°C
• Current Consumption: .7 Amps @ 13.8 Volts
• IP Rating: IP68
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage – Input Range (Volts): 10-30v
• Length (Inches): 3″
• Housing: Black
• Beam Pattern: Flood
• Box Dimensions: 4″H x 5″W x 5″L WT: 1.4 lbs
• UPC: 086429343522
