HEISE LED Lighting Systems HEISE 32″ Blackout Dual Row – 60 LED – Lightbar [HE-BD32] Marine Lighting

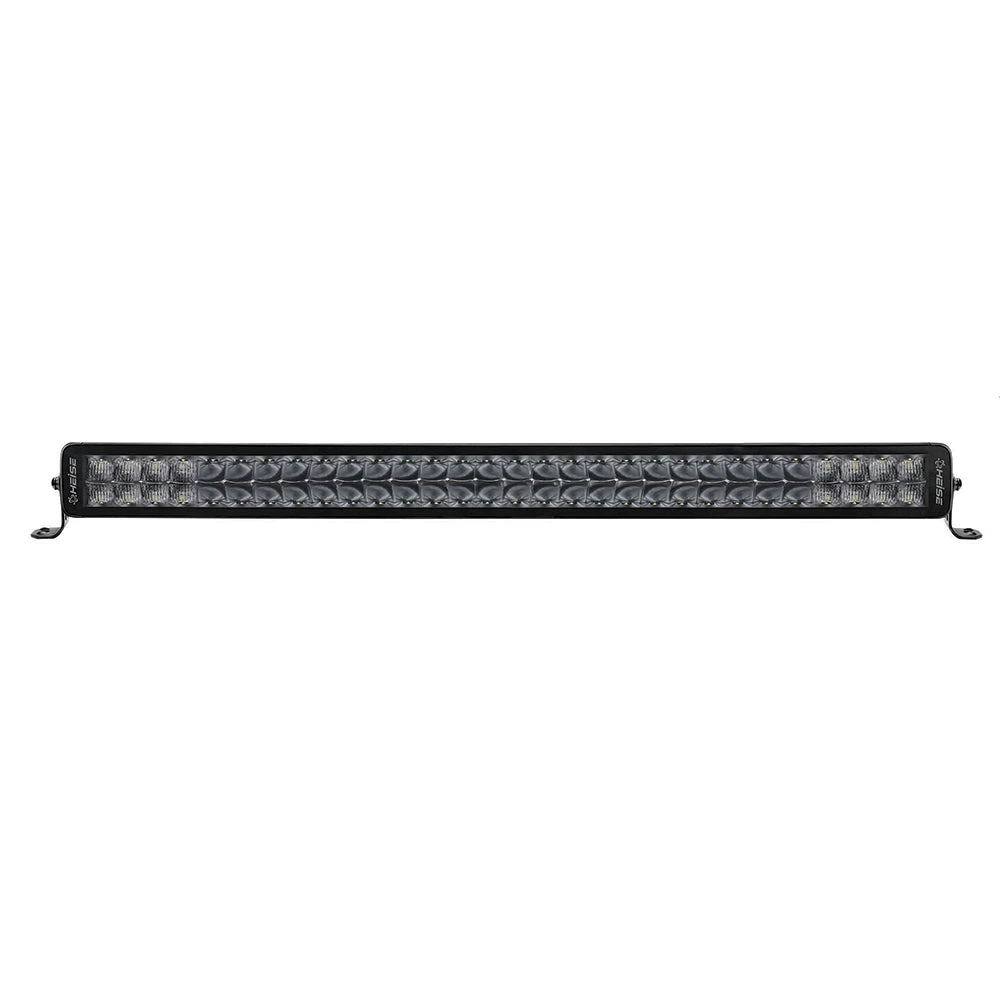

32″ Blackout Dual Row – 60 LED – Lightbar

Heise Blackout Series LED lights are a versatile lighting solution for different vehicles and use. Function meets style with refined frames and cleaner lines for a sleek yet minimalistic look. The upgraded optics have changed from a direct to an indirect placement allowing more control of the location and pattern of the beam. This allows the lights to be tailored to the vehicle, its entire lighting system, and for the driver’s lighting coverage needs.

The hybrid 90o flood and 8o spot beam pattern combination deliver the best of both worlds with intense spotlights in the center flanked by wide beam lights on each side. Heise’s protective vent port allows for internal moisture to escape and prevents any external moisture from entering the light bar housing.

Features:

• Input Voltage: 10-30V Dc
• Color Temperature: 5700K
• Beam Pattern: Combo 90o Flood / 8o Spot
• Housing Material: Die-Cast Aluminum
• Color: Black
• Membrane: Protective Vent Port
• Lens Material: Polycarbonate
• Mounting Bolt Drill: 0.25”
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316
• Operating Temperature: -40oF To +140oF
• Protection: Reverse Polarity
• Mounting: Side & Rear
• Limited Lifetime Warranty

Specifications:

• Length: 32”
• Wattage: 300W
• Raw Lumens: 25,200lm
• Lux at 10m: 8624
• Current Consumption @ 13.8V: 9.3A
• IP Rating: IP67

Vehicle Applications:

• Universal

Quick Guide (pdf)
