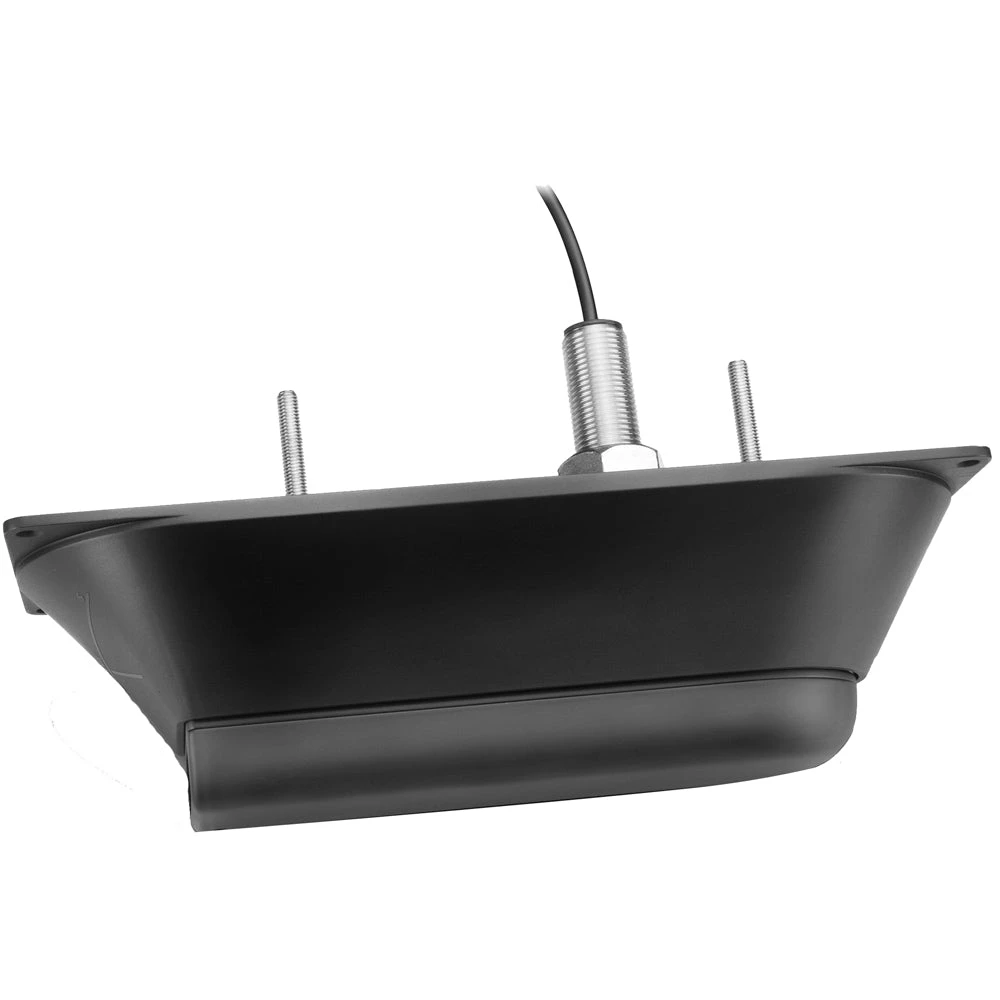

Garmin GT23M-TH Stainless Steel, TH Mount Transducer, Mid-Band CHIRP/CHIRP DownVu – 260/455kHz, 500W, 8-Pin [010-12404-10]

GT23M-TH Stainless Steel, TH Mount Transducer, Mid-Band CHIRP/CHIRP DownVü – 260/455kHz, 500W, 8-Pin

Perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar with a stainless steel stem, this thru-hull mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.

The 8-pin transducer features mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600 W. The CHIRP ClearVü (260/455 kHz) element has a power rating of 500 W.

For installation, follow the included instructions carefully to avoid damaging your boat.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: Yes
• Speed Included: No
• Mounting Style: Thru-Hull
• Chirp: Medium
• Cable Length (Feet): 30′
• Imagining: Standard/Down
• Pins: 8
• Box Dimensions: 6″H x 14″W x 17″L WT: 8.65 lbs
• UPC: 753759148607
