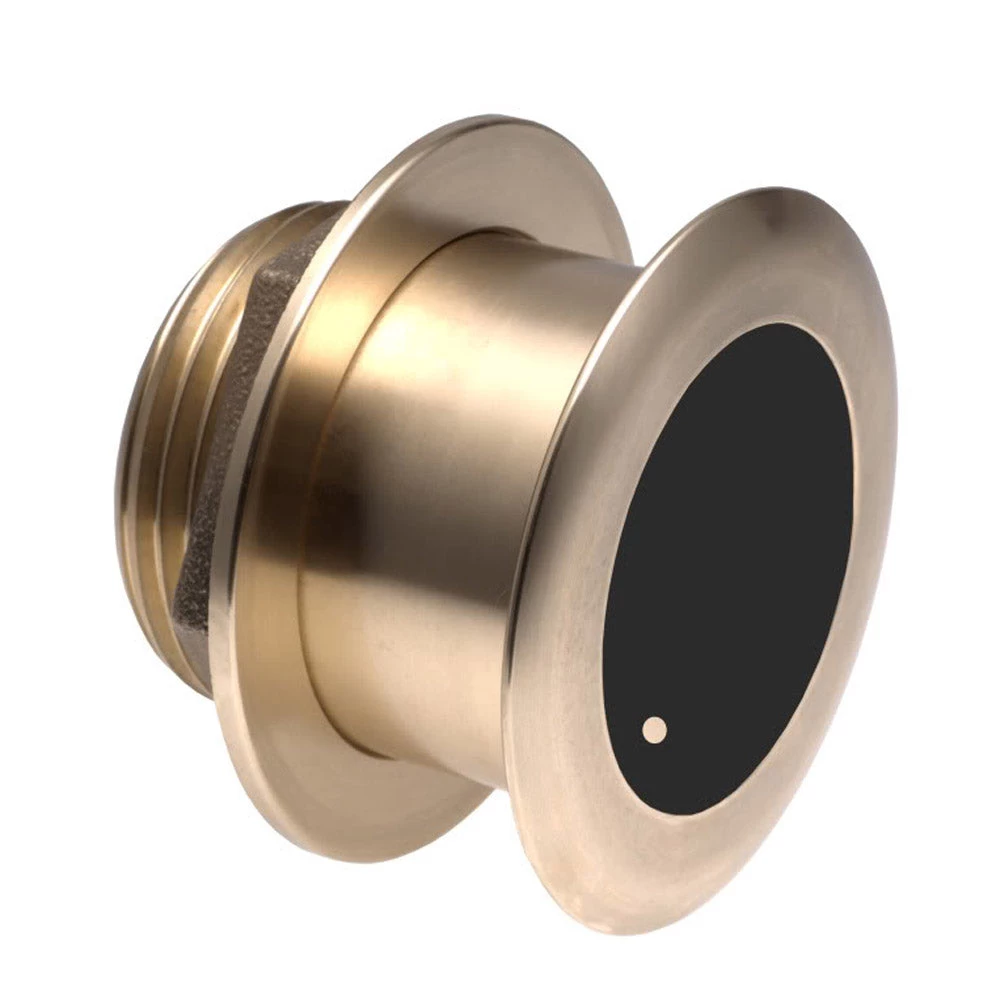

Garmin B175H Bronze 20 Degree Thru-Hull Transducer – 1kW, 8-Pin [010-11937-22]

Airmar B175H
w/20° Tilt
1kW

Flush-mounted bronze housing protrudes less than 1/4″ outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.

Max Depth – 3,000′
Suppoarted Deadrise/Transom Angles – 16-24° Deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Mounting Style: Thru-Hull
• Imagining: Standard
• Chirp: High
• Cable Length (Feet): 39′
• Temperature: Yes
• Pins: 8
• Speed Included: No
• Box Dimensions: 8″H x 10″W x 12″L WT: 11.2 lbs
• UPC: 753759995706

Owner’s Manual (pdf)
Brochure (pdf)
