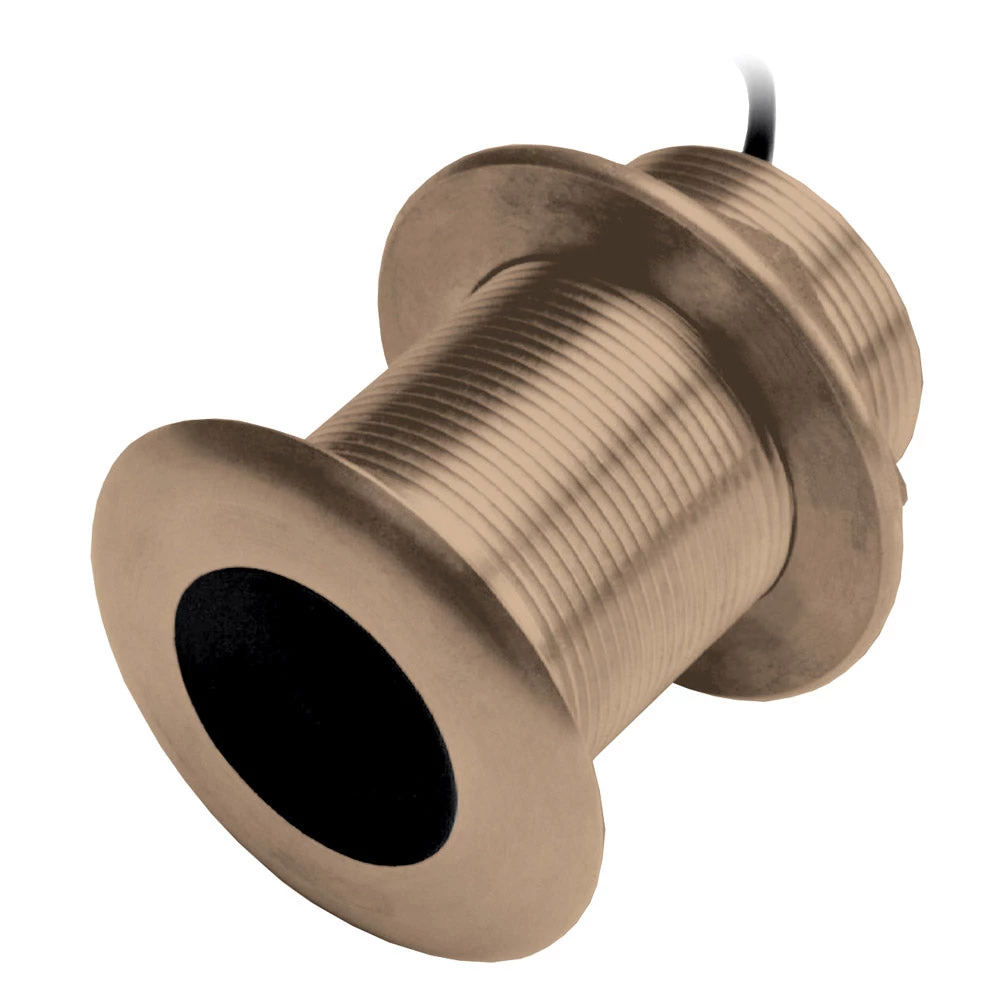

Garmin B150M Bronze 20 Degree Thru-Hull Transducer – 300W, 8-Pin [010-11927-22] Transducers

Airmar B150M
w/20° Tilt
300W

Flush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.

Entry Level Chirp Solution. Provides good depth capability and good target separation.

Max Depth – 1,500′
Suppoarted Deadrise/Transom Angles – 16-24° Deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Chirp: Medium
• Cable Length (Feet): 39′
• Temperature: Yes
• Speed Included: No
• Pins: 8
• Mounting Style: Thru-Hull
• Imagining: Standard
• Box Dimensions: 4″H x 8″W x 10″L WT: 3.8 lbs
• UPC: 801769000856

Owner’s Manual (pdf)
Brochure (pdf)
